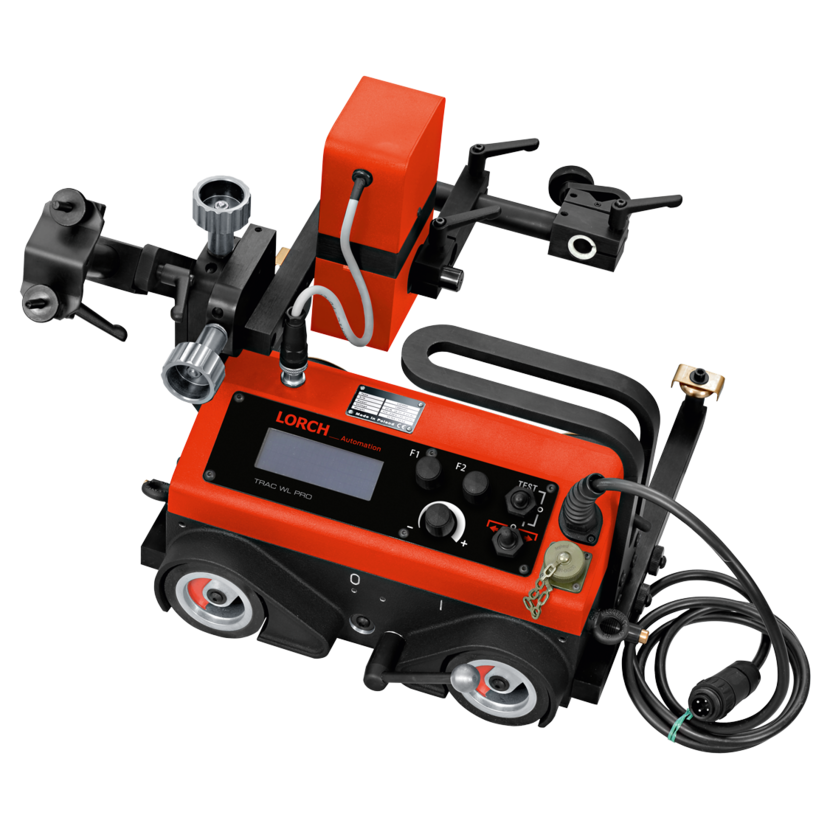

Trac WL PRO
Mobile. Flexible. Partly automated. for perfectly reproducible results.
  • Speed: 0 - 120 cm/min
  • Welding position: PA, PB, PC, PF
  • Mains supply: 1~ 230 / 115 V
  • No weaving function
TRAC WL PRO

Technical data

Mains
Power supply: [V] 230
Power consumption: [W] 25
Unit
Drive: [Wheels] 4
Minimum wall thickness Workpiece: [mm] 5
Ground clearance: [mm] 5
Traction (horizontal): [N] 220
Traction (vertical): [N] 150
Speed Max. (horizontal): [cm/min] 120
Speed Max. (vertical): [cm/min] 110
Fixation
Fixation: Magnet
Dimensions length x width x height
Dimensions (LxWxH) [mm] 404 × 447 × 360
Weights
Weight: [kg] 14
