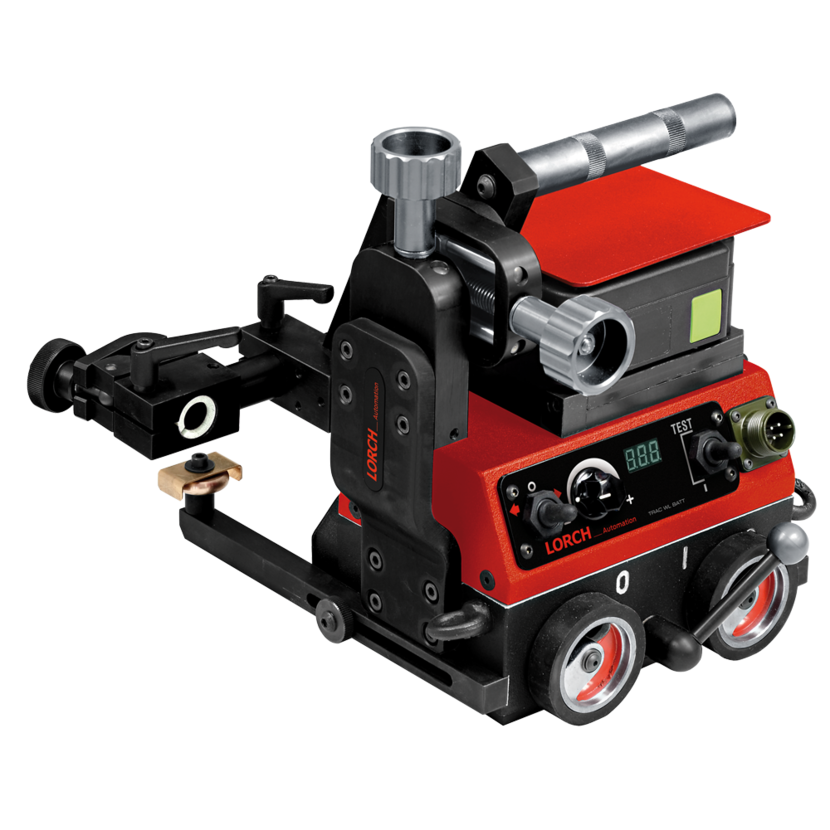

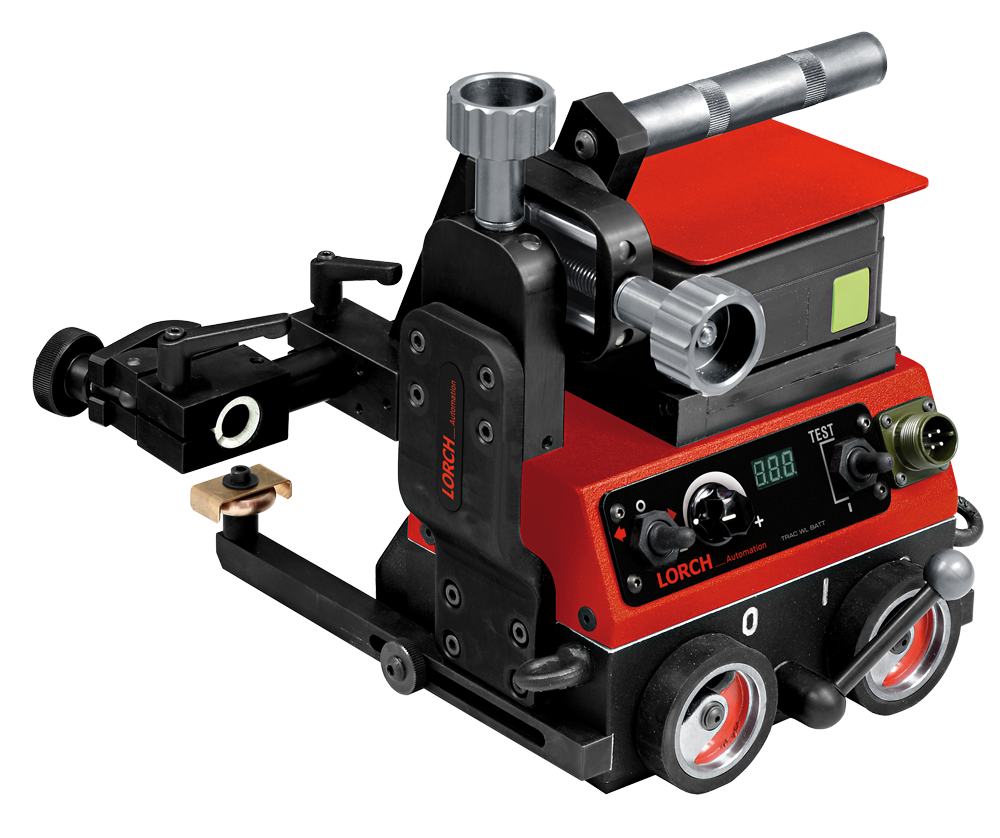

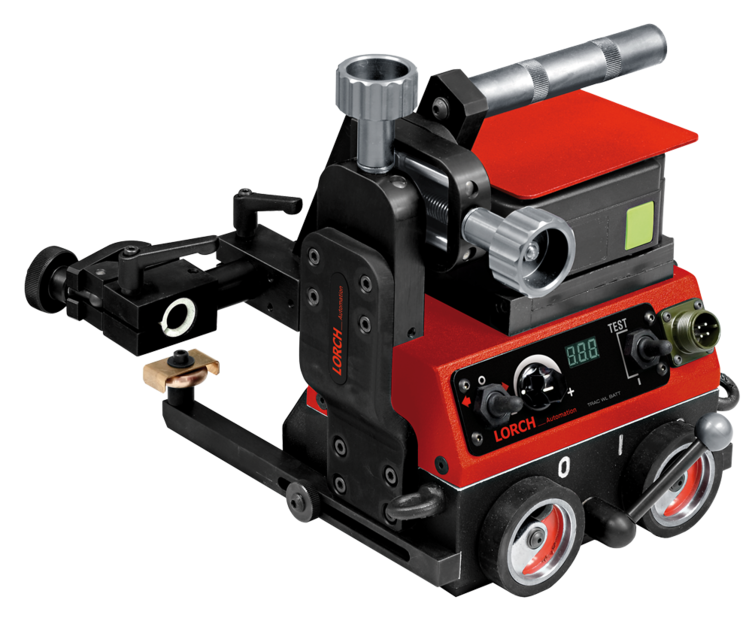

Trac WL BATT
Mobile. Flexible. Partly automated. for perfectly reproducible results.
- Speed: 0 - 110 cm/min
- Welding position: PA, PB, PC, PF
- Mains supply: 18 V DC battery
- No weaving function
TRAC WL BATT
Technical data
| Mains | |
|---|---|
| Power supply: [V] | 18 |
| Battery capacity: [Ah] | 4.2 |
| Power consumption: [W] | 20 |
| Unit | |
|---|---|
| Drive: [Wheels] | 4 |
| Minimum wall thickness Workpiece: [mm] | 4 |
| Ground clearance: [mm] | 4 |
| Traction (horizontal): [N] | 150 |
| Traction (vertical): [N] | 100 |
| Speed Max. (horizontal): [cm/min] | 110 |
| Speed Max. (vertical): [cm/min] | 100 |
| Fixation | |
|---|---|
| Fixation: | Magnet |
| Dimensions | length x width x height |
|---|---|
| Dimensions (LxWxH) [mm] | 320 × 366 × 277 |
| Weights | |
|---|---|
| Weight: [kg] | 8.6 |
