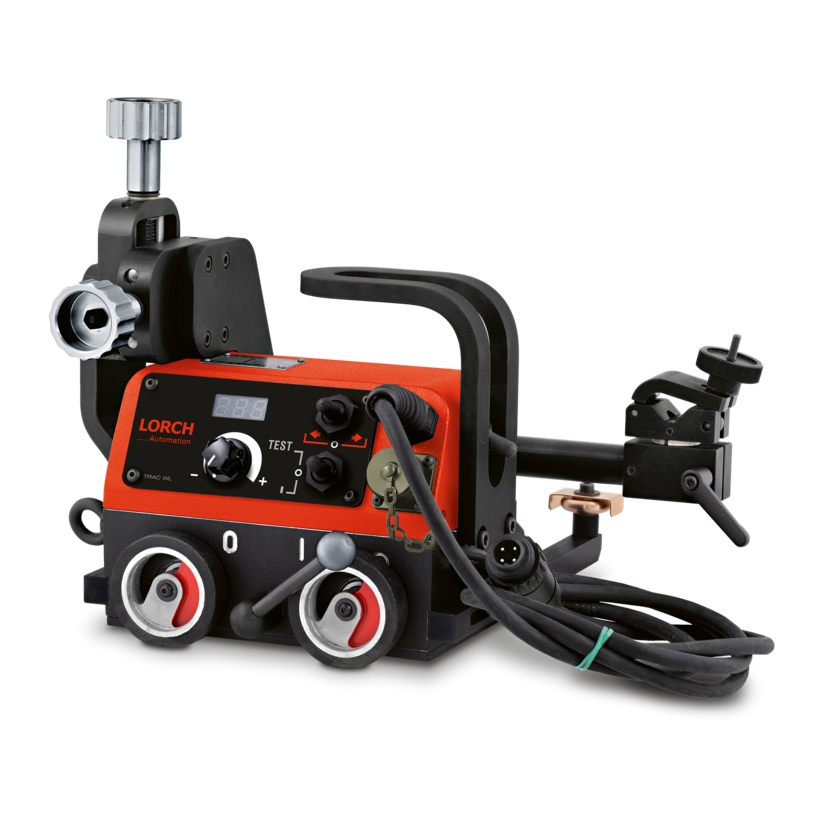

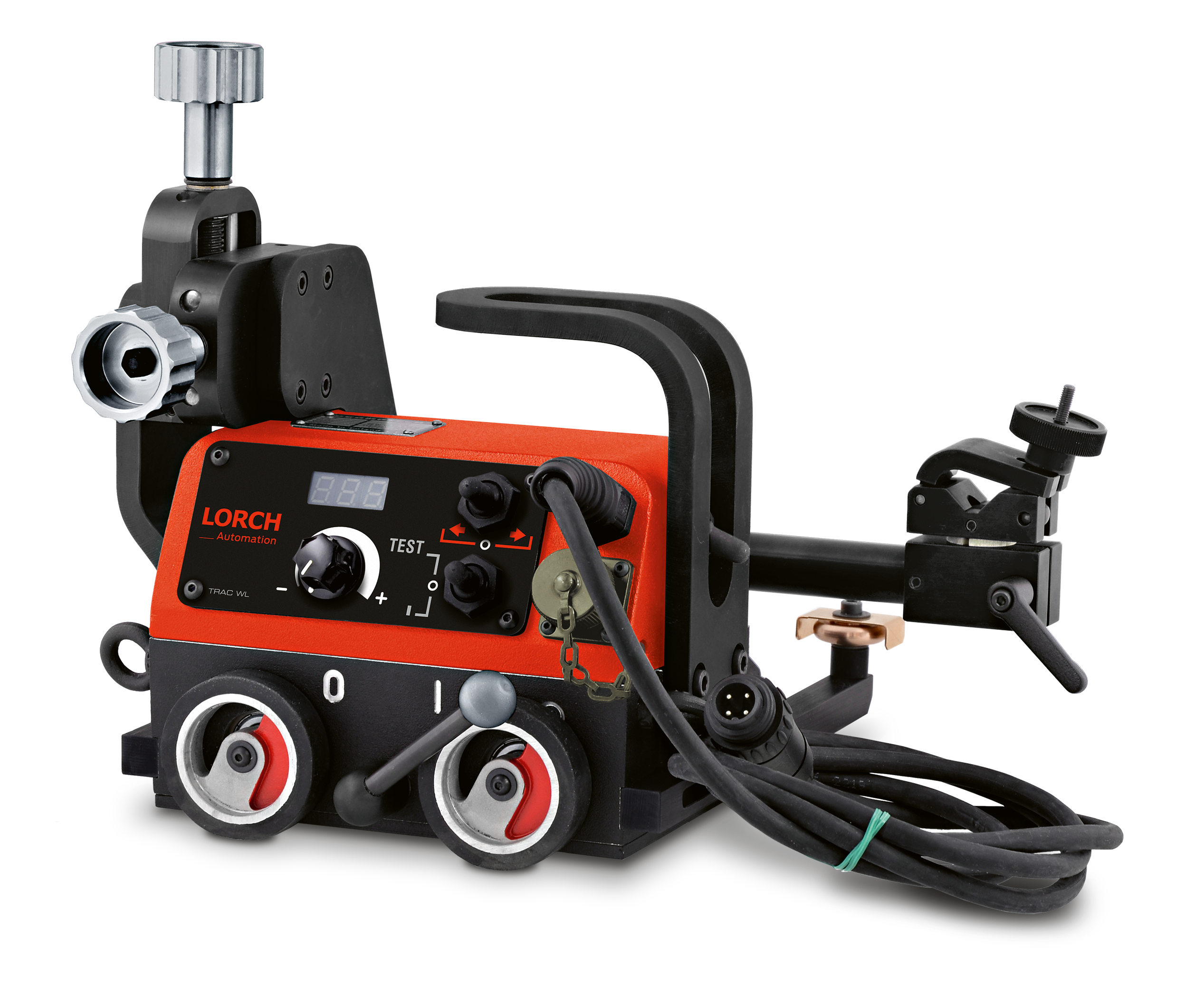

Trac WL
Mobile. Flexible. Partly automated. for perfectly reproducible results.
  • Speed: 0 - 110 cm/min
  • Welding position: PA, PB, PC, PF
  • Mains supply: 1~ 230 / 115 V
  • No weaving function
TRAC WL

Technical data

Mains
Power supply: [V] 230
Power consumption: [W] 20
Unit
Drive: [Wheels] 4
Minimum wall thickness Workpiece: [mm] 4
Ground clearance: [mm] 4
Traction (horizontal): [N] 150
Traction (vertical): [N] 100
Speed Max. (horizontal): [cm/min] 110
Speed Max. (vertical): [cm/min] 100
Fixation
Fixation: Magnet
Dimensions length x width x height
Dimensions (LxWxH) [mm] 320 × 366 × 277
Weights
Weight: [kg] 8
