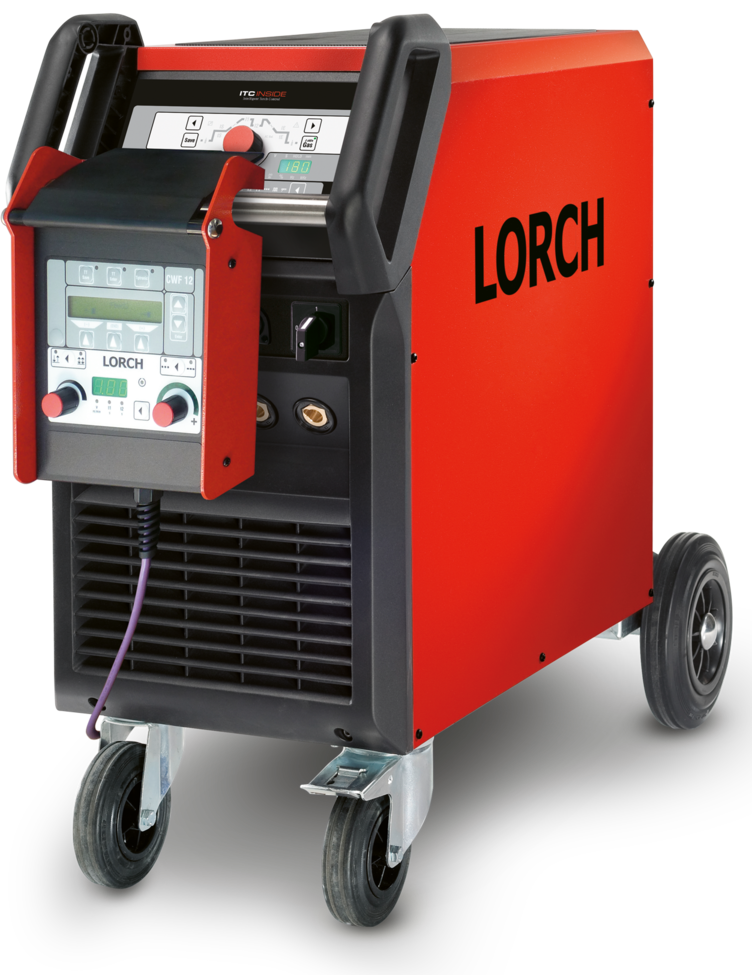

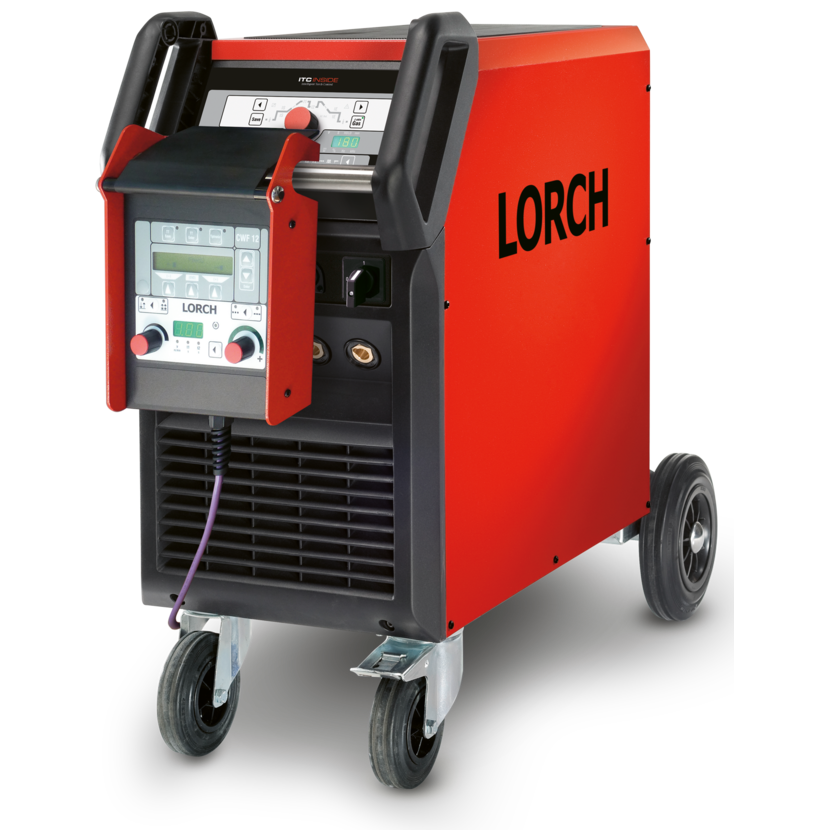

TF-Pro 300
Maximum TIG productivity through integrated cold wire feeder.
  • Operation concepts: ControlPro incl. cold wire control in the manual control panel
  • 5 - 300 A
  • ED 60% at 40°C: 270 A (DC) / 230 A (AC)
  • DC and AC/DC versions available
TF-PRO 300

Unique: Integrated cold wire feeder.

The fully integrated wire feeder with a separate, removable control panel and highly accurate cold wire control reliably feeds the filler material into the weld pool to achieve the greatest TIG productivity.
A 4-roll quality feed motor ensures reliable, precise wire feeding. Digital speed monitoring ensures a perfect weld seam. As the welding current is increased, the automatic setting will automatically adjust the feed rate to match.

The downward sloping wire to roller position exit ensures easy wire change over as well as reliable wire feeding, even with aluminium wires.

Perfect aluminium welding thanks to AC version.

Aluminium TIG welding requires alternating current (AC). Since aluminium is a very good heat conductor, a higher current is required for every additional millimetre of material thickness. The TF-Pro 300 also welds aluminium with material thicknesses in excess of 8 mm easily. Beyond this, the AC mode optimises the current waveform for greatest stability, outstanding cleaning effect of the aluminium oxide skin and reduced noise. The integrated automatic cap shaping function ensures perfect tungsten ball shape as well.


Improved welding quality thanks to MACS.

The additional special Lorch MACS (ModulatedACSystem) process improves welding quality by way of targeted heat application. MACS provides outstanding results, in particular when joining different material thicknesses.

Pulsing and fast pulsing at up to 2 kHz.

The integrated pulse and fast pulse function at up to 2 kHz is particularly suitable for processing thin welding sheets. It enables outstanding weld pool control for perfect results even at difficult welding tasks.

Interval spot function.

The interval spot function reduces heat application. This is of special benefit for welding tasks where disortion and dark temper colours must be avoided, e.g. when processing thin sheets.

Energy efficiency at full power.

The integrated stand-by function ensures turns individual components on and off automatically. The Thermocontrol sensors monitor system temperature and adjust the fan as required to reduce fan noise, dust load inside the machine, and power consumption.

Robust housing.

The TF-Pro housing is extremely robust and mobile thanks to its sturdy handles. This makes it ideal for use in a workshop. The top of the housing also makes for a perfect storage surface.

Country-specific product variants.

Country-specific product variants are available for this Lorch welding unit. These may differ in the mains supply, the mains plug or other product features required for the country. You want to know more? Contact your local Lorch partner.

Technical data

TIG welding
Welding range 3~ 400 V: [A] 5 - 300
Voltage range: [V] 10.2 - 20
TIG Duty cycle AC 400 V
Duty cycle AC 100% (40°c): [A] 200
Duty cycle AC 60% (40°c): [A] 230
Duty cycle AC at max. current (40°c): [%] 30
TIG Duty cycle DC 400 V
Duty cycle DC 100% (40°c): [A] 230
Duty cycle DC 60% (40°c): [A] 270
Duty cycle DC at max. current (40°c): [%] 45
Electrode welding
Welding range 400 V: [A] 10 - 200
Voltage range: [V] 20.4 - 28
Weldable electrodes: [Ø in mm] 1.5 - 5
Electrode duty cycle
Duty cycle 100% (40°c): [A] 170
Duty cycle 60%: [A] 200
Duty cycle at max. current (40°c): [%] 60
Process-independent data
Open circuit voltage: [V] 77 - 87
Mains 400 V
Mains voltage 3~ (50/60 Hz): [V] 400
Mains fuse 3~ (50/60 Hz): [A] 16
Positive mains tolerance 3~ (50/60 Hz): [%] 15
Negative mains tolerance 3~ (50/60 Hz): [%] 15
Mains plug
Mains plug: CEE 16
Standards and approvals
Protection class: IP23S
Insulation class: F
Norm/Standard: EN 60974-01
Designation/Certification: CE, S
Cooling type
Cooling type: Gas-cooled , Water-cooled
Cooling
Standard cooling capacity (l/min): [kW] 1.14
Tank capacity: [l] 3.4
Dimensions length x width x height
Dimensions (LxWxH) [mm] 880 × 400 × 755
Weights
Weight: [kg] 67

ControlPro including cold wire control in the manual control panel

  • “3 steps and weld” operating concept
  • Simple one-button operation
  • Stepless current adjustment
  • Amperometric digital display
  • User-focused operator guidance with illuminated symbols and welding sequence control
  • Tiptronic job memory for 100 welding tasks
  • Separate manual control panel for controlling the cold wire feeder
