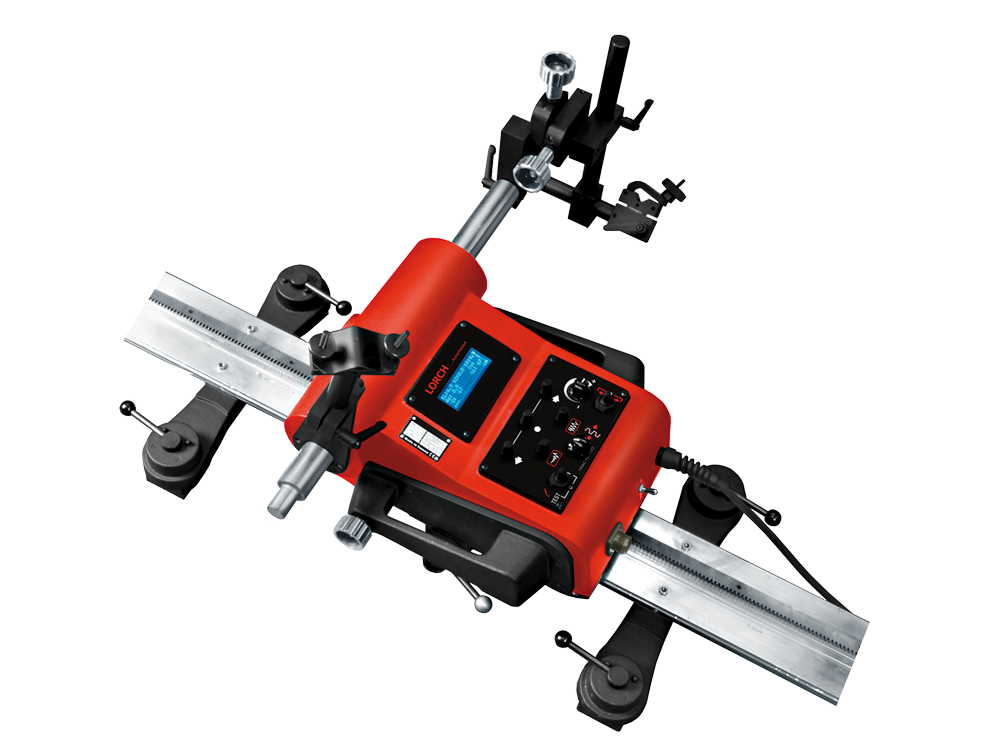

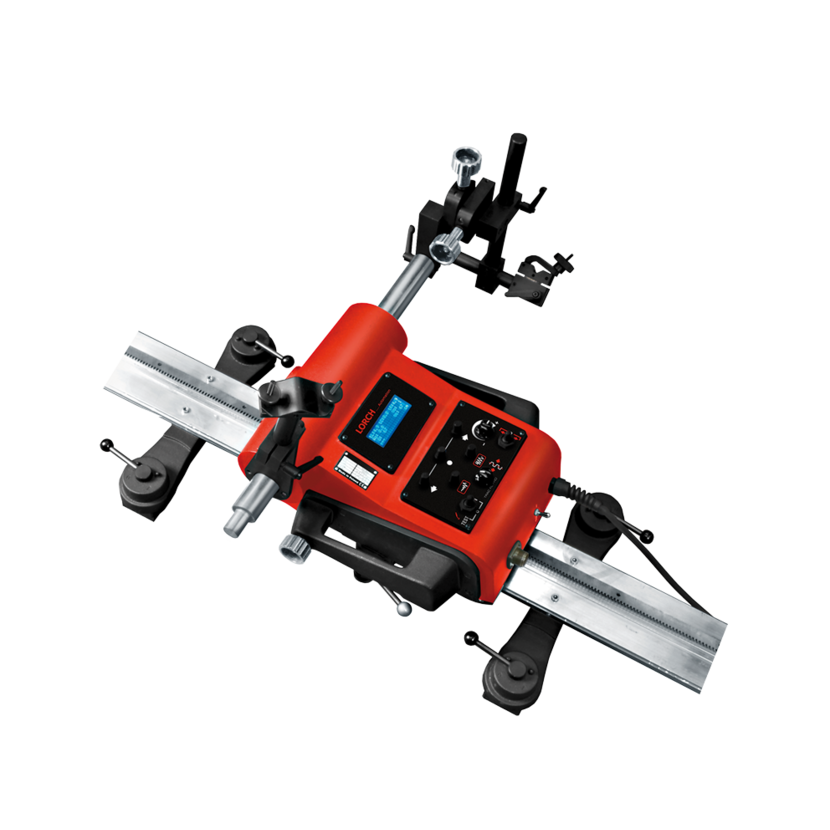

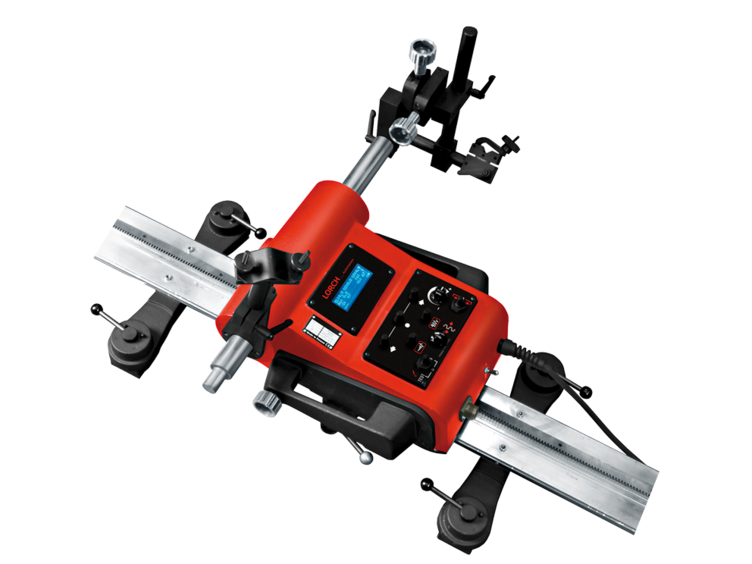

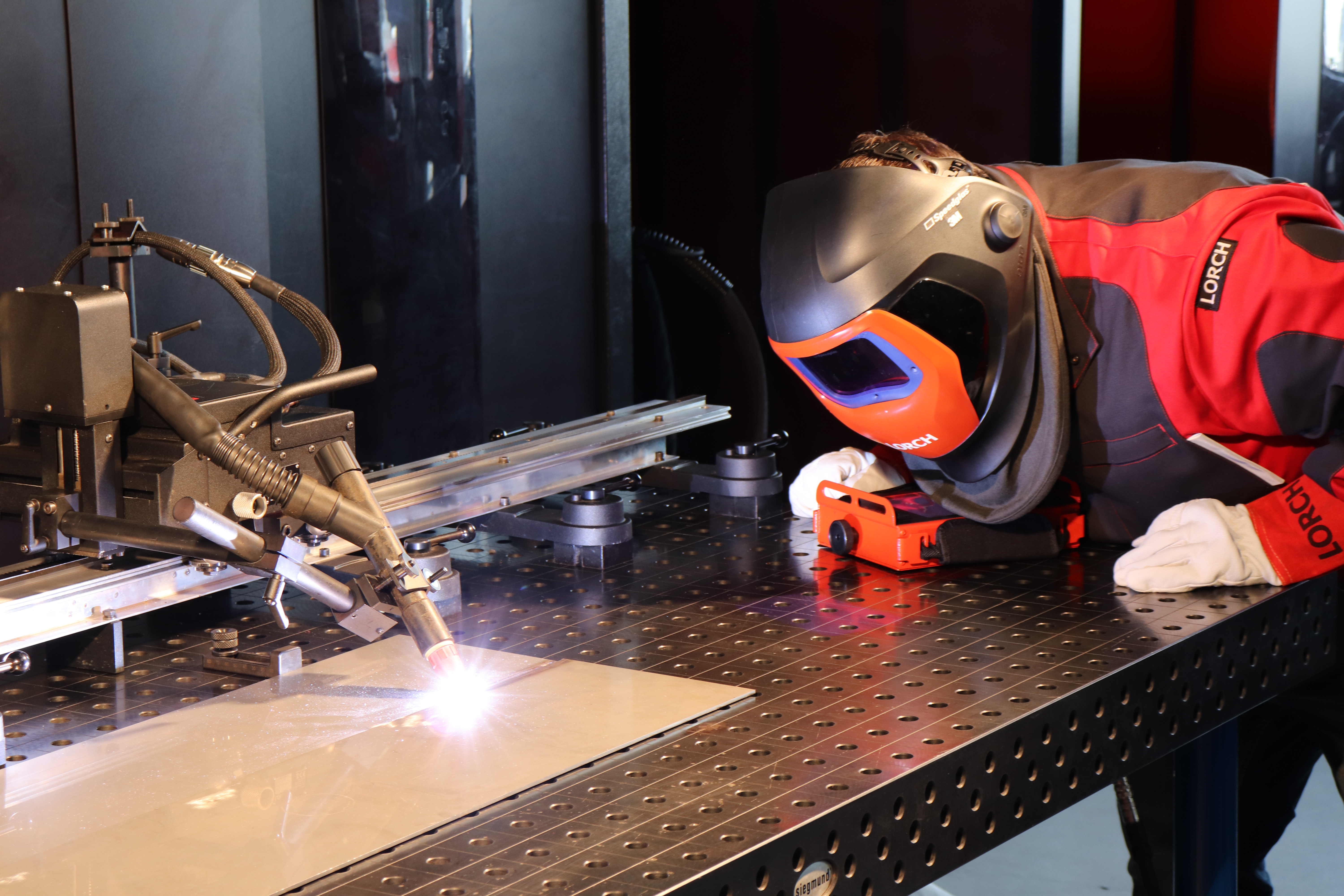

Trac RL Pro
Precise and flexible. Reproducible weld seams for many different materials.
  • Speed: 0 - 120 cm/min
  • Welding position: PA, PB, PC, PF, PG
  • Mains supply: 42 V removable mains unit
  • With weaving function
TRAC RL PRO

Flexibly adaptable track system.

Flexible or rigid tracks with magnetic or vacuum mounting for greatest flexibility in use.

Integrated pendulum unit.

The integrated pendulum unit of the Trac RL Pro enables the production of weld seams at a higher seam volume while compensating more easily for workpiece positioning errors.

Lorch Plug & Weld.

Simple and comfortable connection of your Trac with the matching Lorch welding system: simply connect it and start welding.

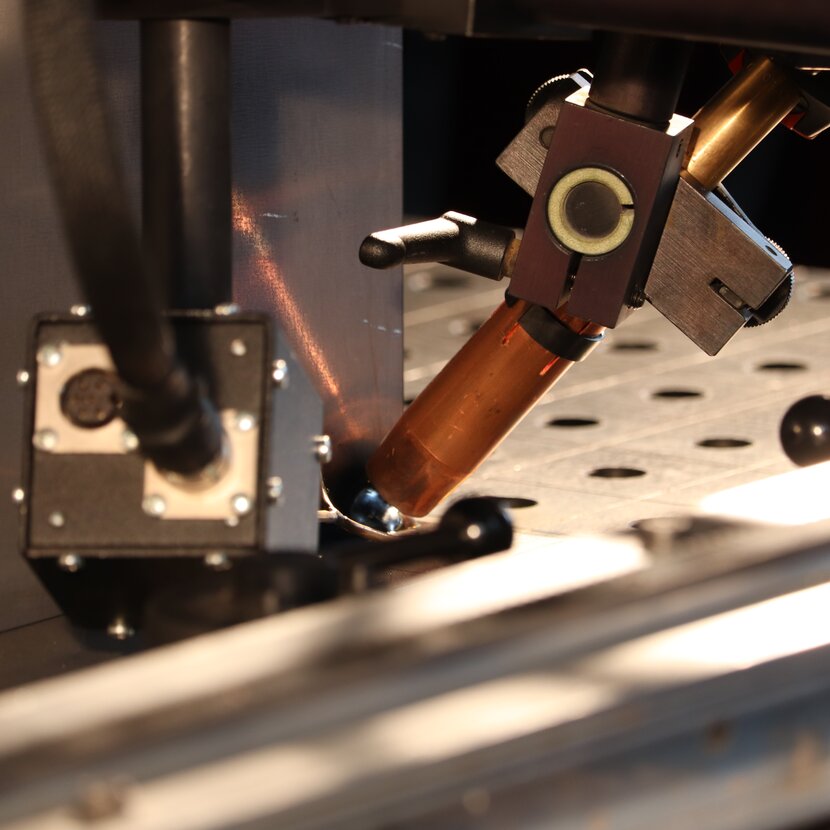

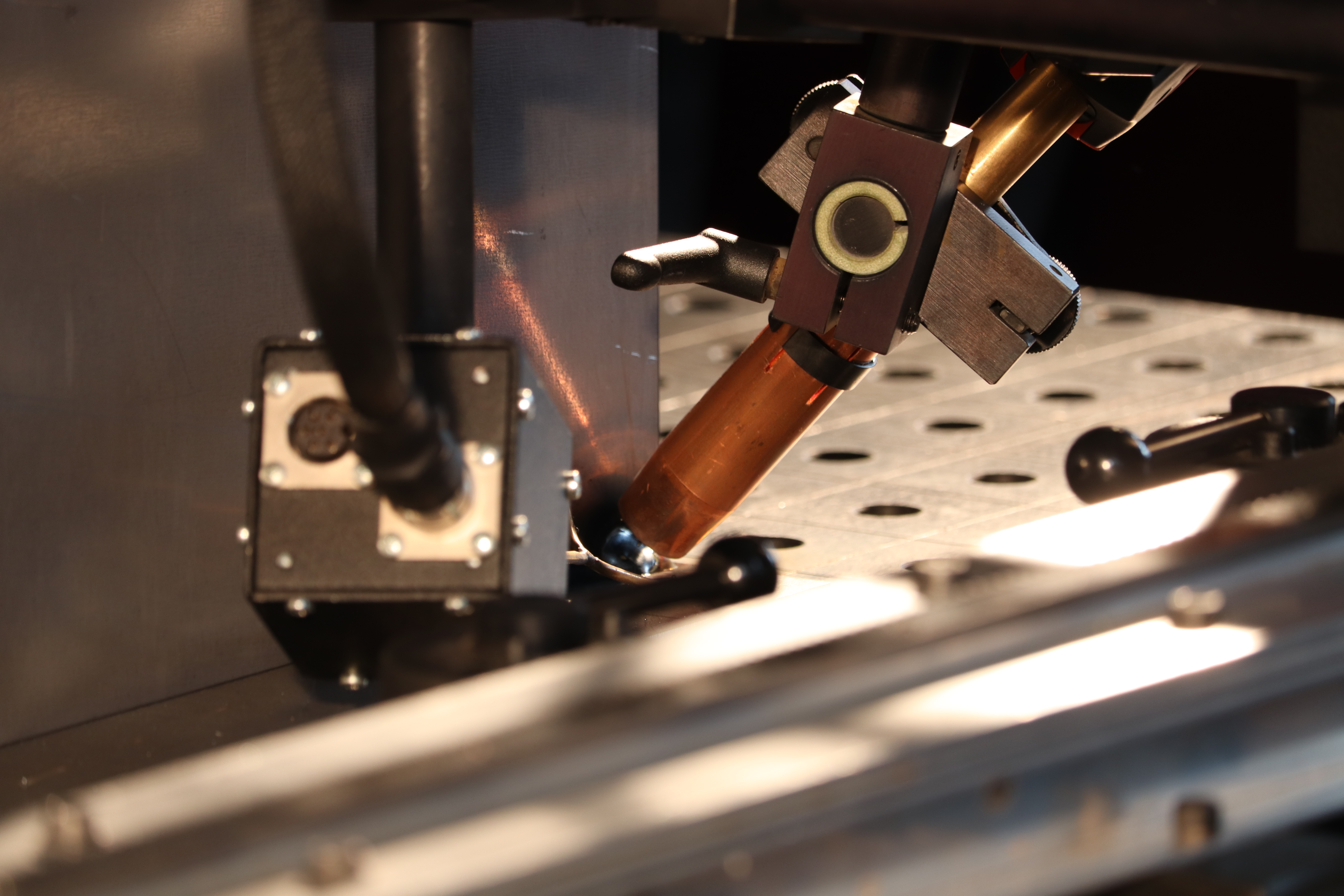

Optimal torch setting.

Three-dimensional torch fine adjustment makes the torch quick and easy to optimise for the application at hand.

Technical data

Mains
Power supply: [V] 230
Power consumption: [W] 100
Unit
Minimum wall thickness Workpiece: [mm] 5
Traction (horizontal): [N] 350
Traction (vertical): [N] 150
Speed Max. (horizontal): [cm/min] 120
Speed Max. (vertical): [cm/min] 110
Fixation
Fixation: Vacuum , Magnet
Dimensions length x width x height
Dimensions (LxWxH) [mm] 441 × 670 × 362
Weights
Weight: [kg] 20

TRAC RL PRO

  • Simple button and dial operation advanced
  • Parameter settings via buttons or OLED graphic display

Other products of the series

MECHANIZATION

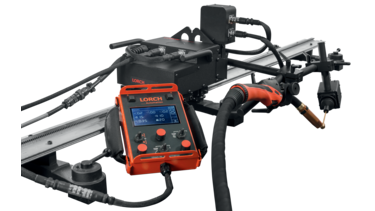

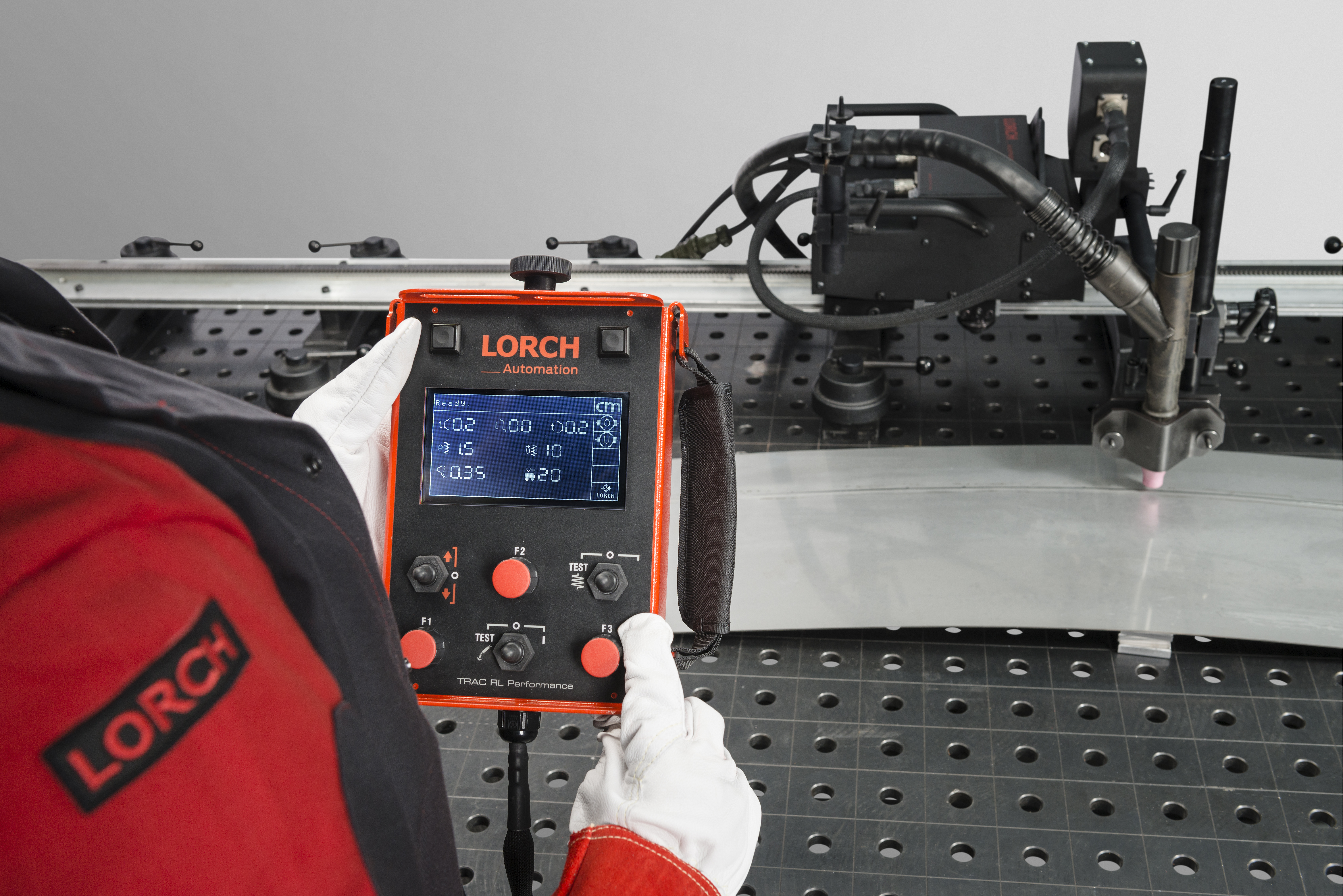

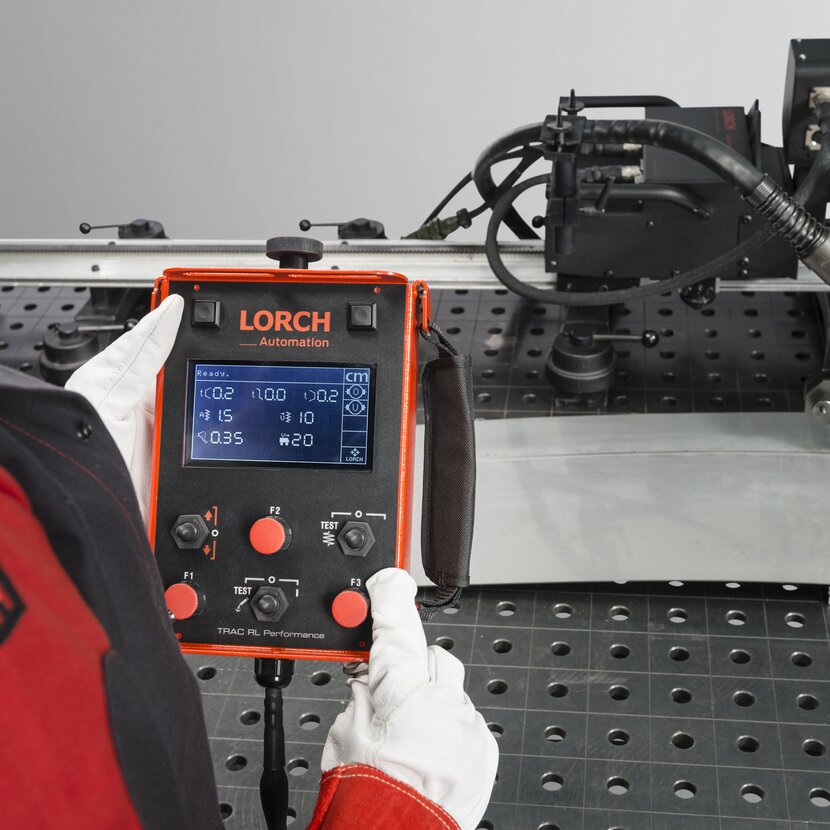

TRAC RL Performance

  • Speed: 0 - 300 cm/min
  • Welding position: PA, PB, PC, PF, PG
  • Mains supply: 1~ 230 / 115 V
  • With weaving function
Read more
