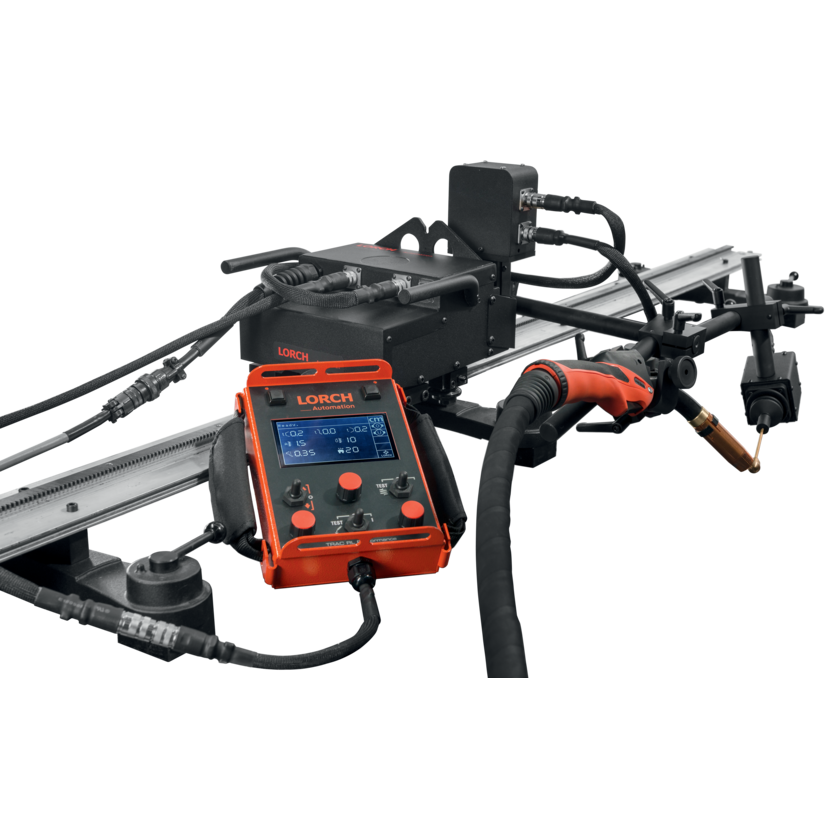

Trac RL Performance
Precise and flexible. Reproducible weld seams for many different materials.
  • Speed: 0 - 300 cm/min
  • Welding position: PA, PB, PC, PF, PG
  • Mains supply: 1~ 230 / 115 V
  • With weaving function
TRAC RL PERFORMANCE

Flexibly adaptable track system.

Flexible or rigid tracks with magnetic or vacuum mounting for greatest flexibility in use.

Operation made easier.

The intuitive control panel saves time when setting the required welding parameters with buttons and a plain text display. The Trac RL Performance control panel can even be disconnected for more ergonomic operation.

Integrated orbital function.

Highly efficient welding with reproducible seam quality even in awkward positions is made possible by the integrated orbital function of the Trac RL Performance.

Lorch Plug & Weld.

Simple and comfortable connection of your Trac with the matching Lorch welding system: simply connect it and start welding.

Optimal torch setting.

Three-dimensional torch fine adjustment makes the torch quick and easy to optimise for the application at hand.

Technical data

Mains
Power supply: [V] 230
Unit
Traction (horizontal): [N] 400
Traction (vertical): [N] 300
Speed Max. (horizontal): [cm/min] 300
Speed Max. (vertical): [cm/min] 100
Fixation
Fixation: Rail
Dimensions length x width x height
Dimensions (LxWxH) [mm] 470 × 318 × 354
Weights
Weight: [kg] 10

TRAC RL Performance

  • Parameter settings via buttons or OLED graphic display
  • Detaching control panel for adjusting the parameters in operation

Downloads

You would like to learn more? Technical data as well as details on application and equipment can be found here:
