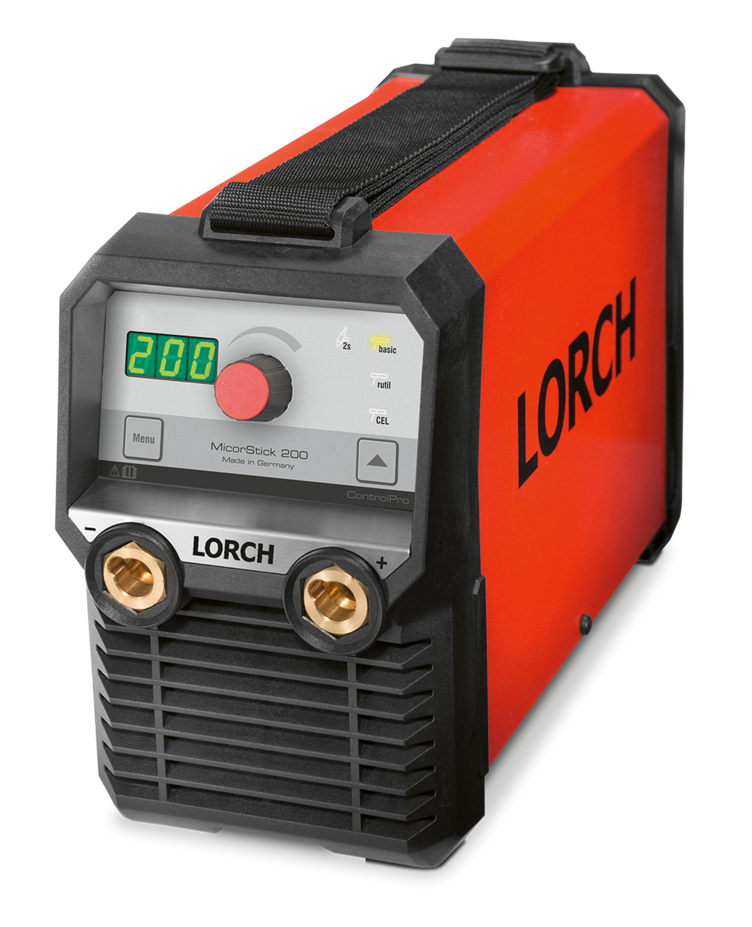

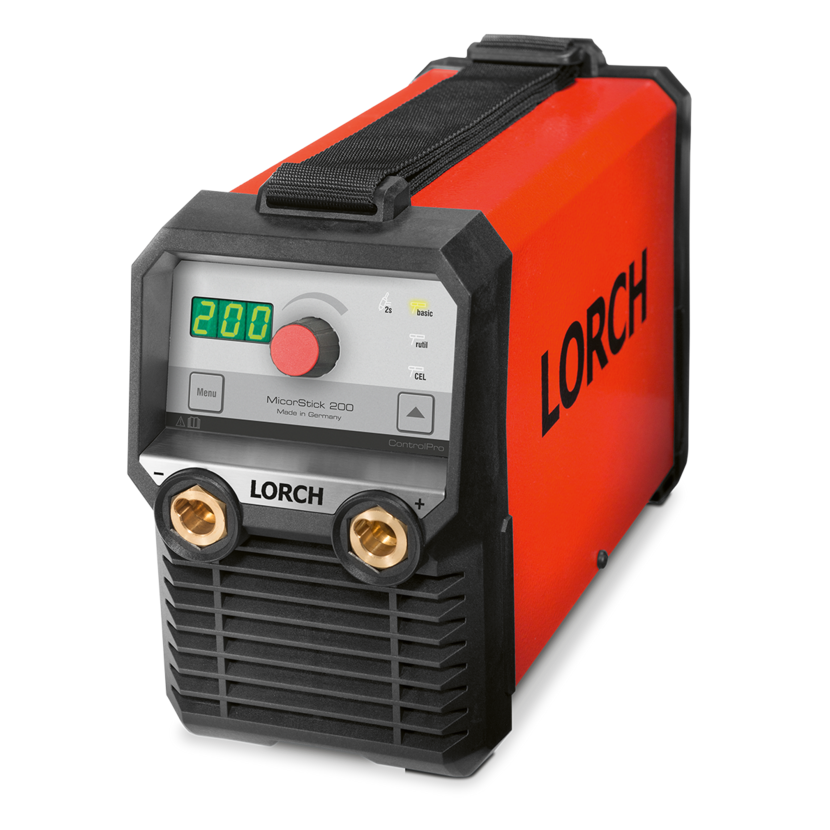

MicorStick 200
Everywhere. Convincing. Superior.
  • Operation concepts: ControlPro, ControlPro RC
  • 10 - 200 A
  • ED 60% at 40°C: 150 A
  • Weldable electrode: Up to 5.0 mm Ø
MICORSTICK 200

A robust featherweight.

On average, welding equipment like this tends to fall off of workbenches or sills four times during its service life! Able to take falls from a height of 80 cm, the MicorStick 200 with its weight of only 6.3 kg can cope with this easily and will continue to give you reliable welding performance.

Long-distance champions.

Extension cords, low and fluctuating line voltage, generator operation: The MicorStick 200 can weld easily even using extension cables of up to 200 metres and will compensate for dropping voltage. It will not turn off before reaching a negative tolerance of 40%.

Safe and standard-compliant.

No compromises! The IP 23S, the S mark, and verified CE conformity in accordance with European standards as well as ongoing quality assurance in Germany promise the greatest safety in the workshop and at the customer’s site.

Long-term welding quality.

The MicorStick 200 puts an end to broken connectors, damaged insulation, kinked welding cables, and charred contacts with thick 25 mm² welding cables and large, industrial-grade, 13 mm Ø welding sockets to make a true difference, offer greater safety, and vastly improve welding quality.

Country-specific product variants.

Country-specific product variants are available for this Lorch welding unit. These may differ in the mains supply, the mains plug or other product features required for the country. You want to know more? Contact your local Lorch partner.

Technical data

Electrode welding
Welding range 400 V: [A] 10 - 200
Voltage range: [V] 20.4 - 28
Weldable electrodes: [Ø in mm] 1.5 - 5
Electrode duty cycle
Duty cycle 100% (40°c): [A] 130
Duty cycle 60%: [A] 150
Duty cycle at max. current (40°c): [%] 30
TIG welding
Welding range 3~ 400 V: [A] 15 - 200
Voltage range: [V] 10.6 - 18
TIG Duty cycle DC 400 V
Duty cycle DC 100% (40°c): [A] 130
Duty cycle DC 60% (40°c): [A] 150
Duty cycle DC at max. current (40°c): [%] 30
Process-independent data
Open circuit voltage: [V] 78 - 113
Mains 400 V
Mains voltage 3~ (50/60 Hz): [V] 400
Mains fuse 3~ (50/60 Hz): [A] 16
Positive mains tolerance 3~ (50/60 Hz): [%] 15
Negative mains tolerance 3~ (50/60 Hz): [%] 15
Mains plug
Mains plug: CEE 16
Standards and approvals
Protection class: IP23S
Insulation class: F
Norm/Standard: EN 60974-01
Designation/Certification: CE,S
Cooling type
Cooling type: Gas-cooled
Dimensions length x width x height
Dimensions (LxWxH) [mm] 360 × 130 × 215
Weights
Weight: [kg] 6.3

BasicPlus

  • “3 steps and weld” operating concept
  • Simple one-button operation
  • Stepless current adjustment
  • Electrode preselection (basic, rutile, and CEL) for optimal welding parameters

ControlPro

  • “3 steps and weld” operating concept
  • Simple one-button operation
  • Stepless current adjustment
  • Electrode preselection (basic, rutile, and CEL) for optimal welding parameters
  • Amperometric digital display
  • Submenu for individual system setting adjustments
