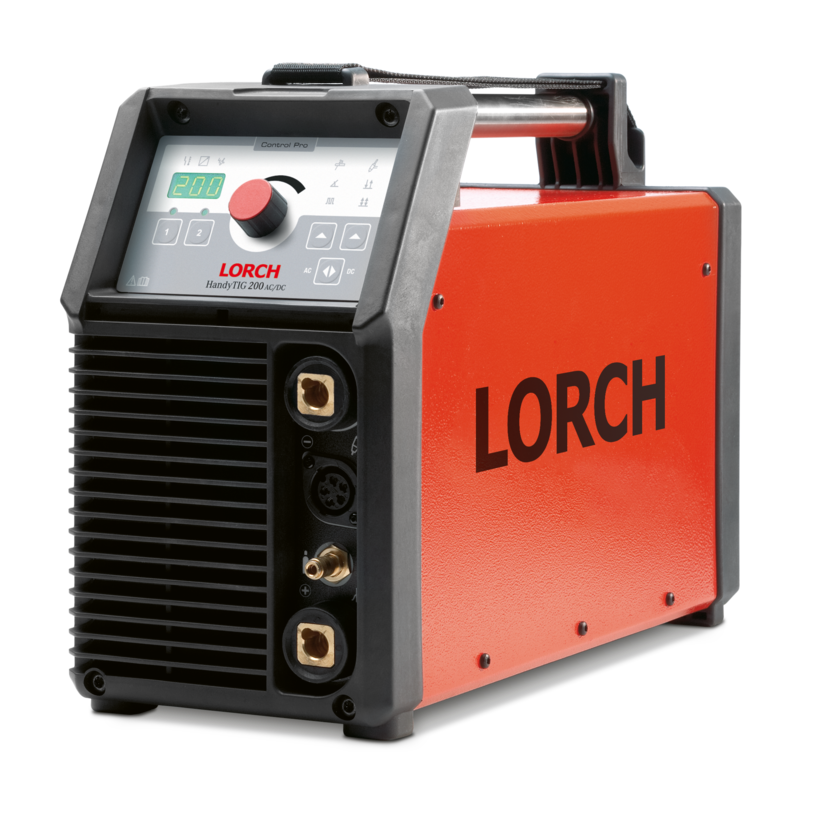

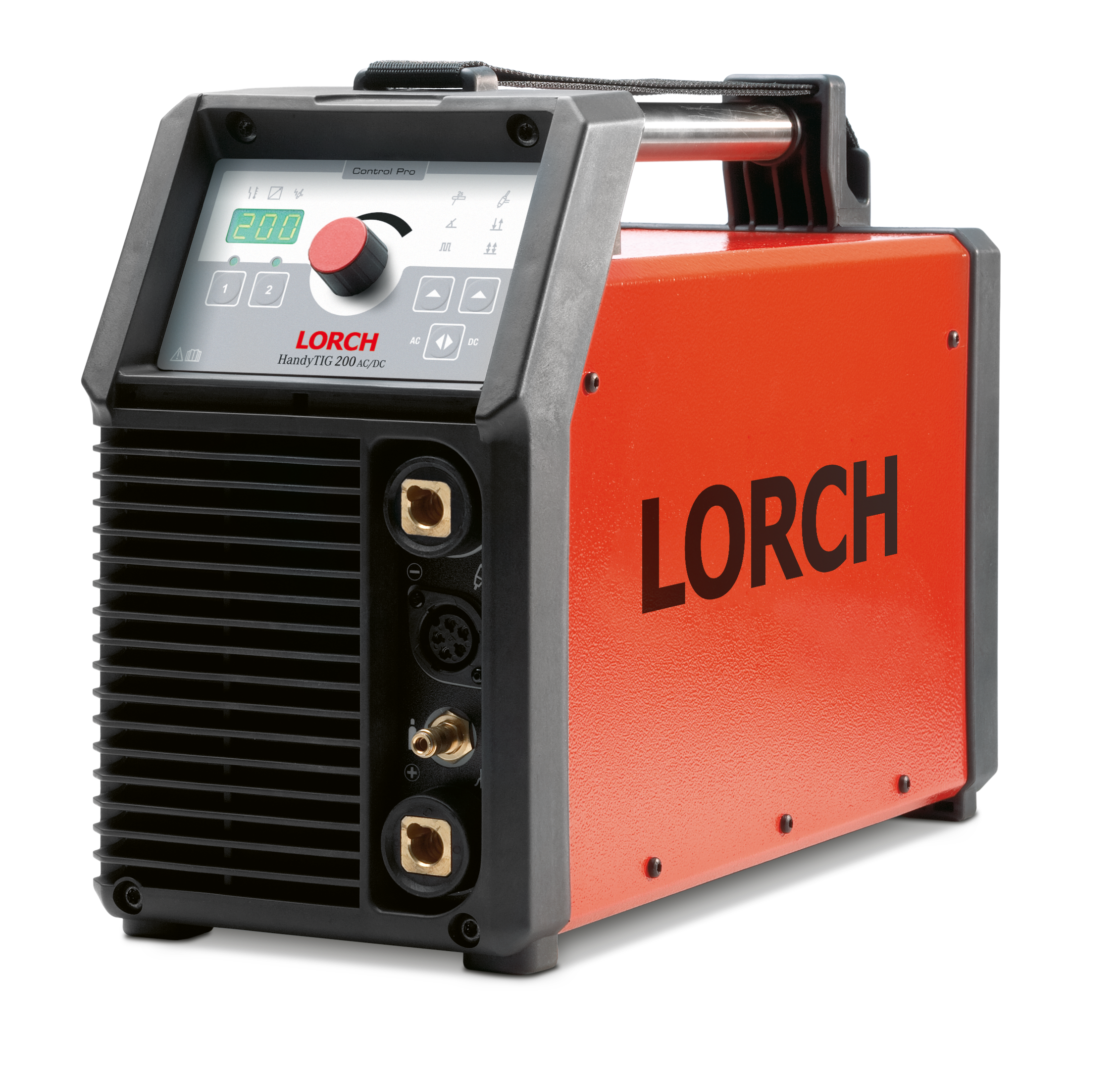

HandyTIG 200 AC/DC
The compact all-rounder for aluminium and stainless steel.
  • Operation concepts: ControlPro
  • 3 - 200 A
  • ED 60% at 40°C: 180 A
  • Aluminium: up to 8 mm
HANDYTIG 200 AC/DC

Reduced noise at stable arc.

AC mode optimises the current form for greatest stability, outstanding cleaning effect of the aluminium oxide skin and reduced noise.

Durability and resilience.

The standard protective cover of the control panel and the integrated dust filter warrant resistance and durability even in rough installation conditions. The special crash protection keeps the housing safe even at falls from a height of up to 60 cm.

Job function.

The job function stores settings for 2 TIG and 2 electrode welds to be retrieved easily at need. Perfect for repetitive work.

MMA welding.

Lorch welding units of the HandyTIG 200 AC/DC can be used for MMA welding as well. The arc-force control comes ensures arc stability and perfect material transition. The electrode will not stick or anneal due to the anti-stick system.

Country-specific product variants.

Country-specific product variants are available for this Lorch welding unit. These may differ in the mains supply, the mains plug or other product features required for the country. You want to know more? Contact your local Lorch partner.

Read more

Technical data

TIG welding
Welding range 1~ 230 V: [A] 3 - 200
Voltage range: [V] 10.1 - 18
TIG Duty cycle DC 400 V
Duty cycle DC 100% (40°c): [A] 160
Duty cycle DC 60% (40°c): [A] 180
Duty cycle DC at max. current (40°c): [%] 45
Electrode welding
Welding range 230 V: [A] 10 - 170
Voltage range: [V] 20.4 - 26.8
Weldable electrodes: [Ø in mm] 1.5 - 4
Electrode duty cycle
Duty cycle 100% (40°c): [A] 160
Duty cycle 60%: [A] 180
Duty cycle at max. current (40°c): [%] 45
Process-independent data
Open circuit voltage: [V] 83 - 111
Mains 230 V
Mains voltage 1~ (50/60 Hz): [V] 230
Mains fuse 1~ (50/60 Hz): [A] 16
Positive mains tolerance 1~ (50/60 Hz): [%] 15
Negative mains tolerance 1~ (50/60 Hz): [%] 25
Mains plug
Mains plug: Schuko
Standards and approvals
Protection class: IP23S
Insulation class: F
Norm/Standard: EN 60974-01
Designation/Certification: CE, S
Cooling type
Cooling type: Gas-cooled
Dimensions length x width x height
Dimensions (LxWxH) [mm] 480 × 185 × 326
Weights
Weight: [kg] 13.4

ControlPro AC/DC

  • “3 steps and weld” operating concept
  • Stepless current adjustment
  • Amperometric digital display
  • Job memory for 2 TIG and MMA welding tasks each
