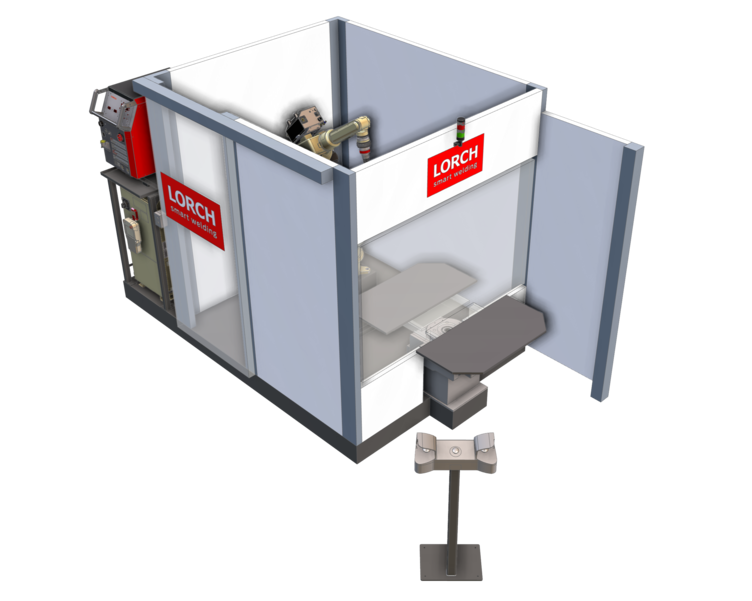

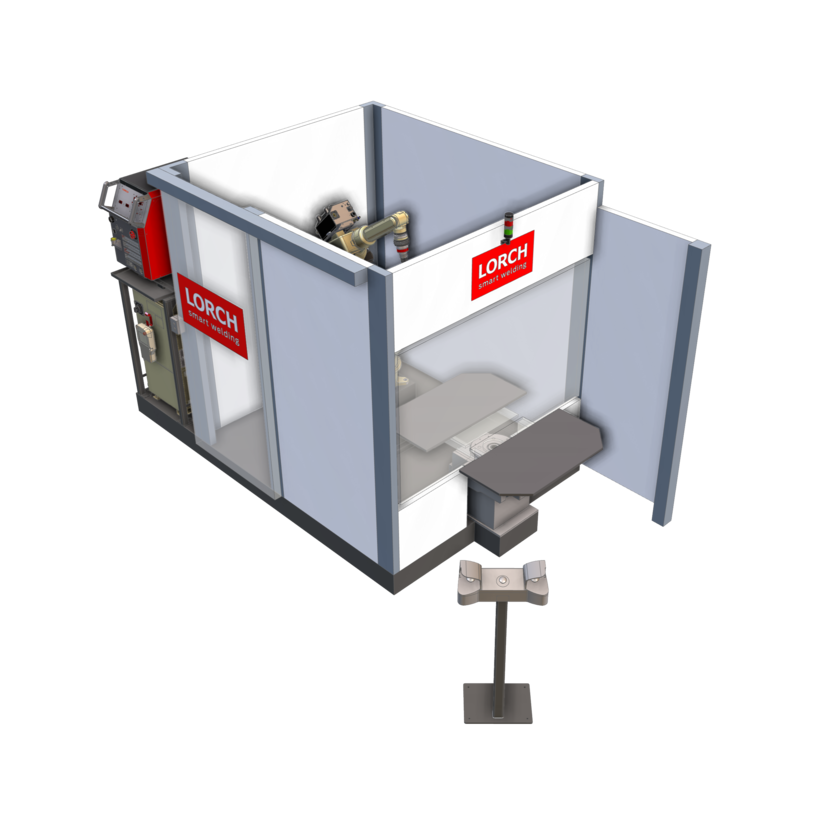

CUBE 02
Precise. Efficient. Simple.
  • Available with gas- or water-cooled welding source
  • Steel / stainless steel / aluminium
  • Welding robot FD19-V8 - 6 axes
  • Has got the hang of welding.
CUBE 02

Perfectly equipped.

Motorised 180° rotating indexing table for holding clamping tools.

The best of both worlds.

With the precise movements of the OTC Daihen welding robot and the innovative Lorch welding technology, entire production series are welded with maximum quality.

Maximum safety.

The compact welding cells form a closed, CE-compliant system. The numerous safety features ensure the best possible protection for the user.

Plug & Weld.

The welding cells are customised and delivered ready to use. Simply plug in and start welding.

Increased productivity.

Series production around the clock? The welding cells from Lorch and OTC are ideally suited for high-volume production. Thanks to the efficient workflow and exact reproducibility of the seams, productivity is significantly increased.

Technical data

Robotertyp
Schweißzellentyp FD19-V8
Steuerungstyp FD19
Feldbus Schnittstelle EtherNet IP
Schweißzellen Maße
Abmessungen Schweißtisch Länge 1000 mm
Abmessungen Schweißtisch Breite 500 mm
Abmessungen Schweißtisch Höhe 860 mm
Abmessungen Zelle gesamt Länge 3993 mm
Abmessungen Zelle gesamt Breite 2116 mm
Abmessungen Zelle gesamt Höhe 2646 mm
Schweißzellen Daten
Traglast Roboterarm 8 kg
Anzahl Achsen 6
Maximaler Arbeitsbereich (Roboter) 1437 mm
Traglast Schweißtisch 125 kg

Downloads

You would like to learn more? Technical data as well as details on application and equipment can be found here:
