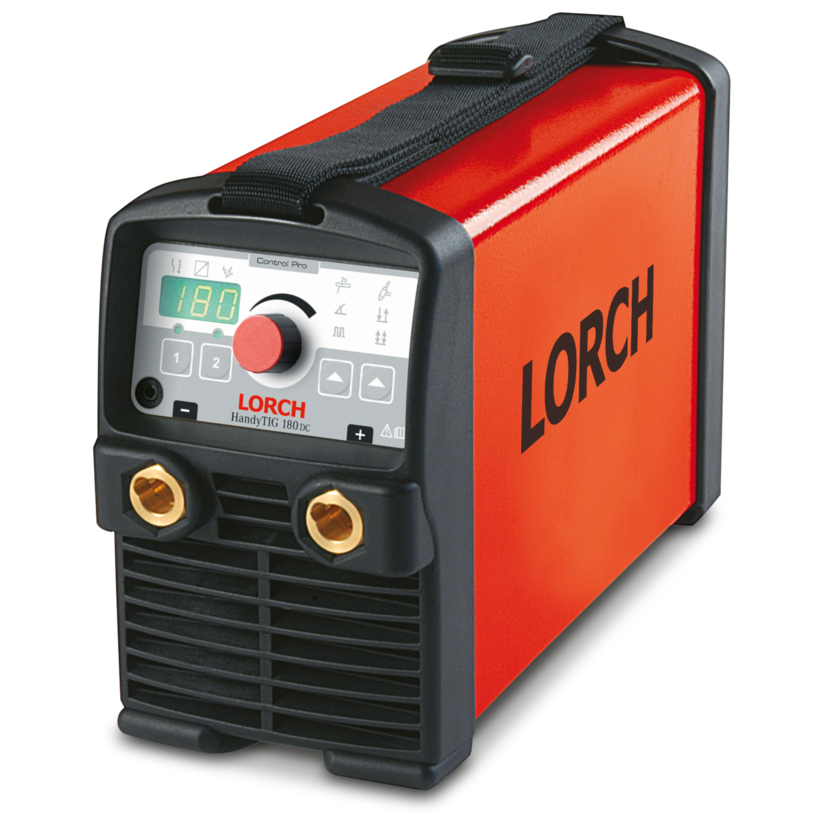

HandyTIG 180 DC
Your entry into the professional league of TIG welding.
  • Operation concepts: ControlPro
  • 5 - 180 A
  • ED 60% at 40°C: 150 A
  • Steel/stainless steel: up to 8 mm
HANDYTIG 180 DC

Robust build with crash protection.

Are light weight and robust build mutually exclusive? Of course they aren’t! Even dropped down the stairs or pushed off of a workbench, this system will survive easily thanks to its crash protection at heights of up to 80 cm.

Mobile at the construction site.

Compact enough to fit into the optional assembly case with full TIG equipment for comfortable transport.

Longevity.

The special coating of the electronics, its integrated air duct and oversized power components optimise protection and service lives.

Safety and certification.

The Lorch HandyTIG 180 DC welding unit offers true IP 23S certification, the S mark, and tested CE conformity to European standards. Ongoing quality assurance “Made in Germany” further adds to this package to ensure uncompromising safety in the workshop and at the construction site.

Country-specific product variants.

Country-specific product variants are available for this Lorch welding unit. These may differ in the mains supply, the mains plug or other product features required for the country. You want to know more? Contact your local Lorch partner.

Technical data

Mains
Mains voltage: 230 V
Mains plug: Schuko
Netzabsicherung 16 A
Negative Netztoleranz 15 %
Positive Netztoleranz 15 %
Phasen (50/60 Hz) 1
Dimensions and weights
Gewicht Stromquelle 6.5 kg
Height 211 mm
Width 130 mm
Length 337 mm
Standards and approvals
Norm EN 60974-01
Schutzart (EN 60529) IP23S
Insulation class: F
Kennzeichnung CE. S
TIG welding
Welding range min. 5 A
ED bei max. Strom 40°C (AC) 35 %
ED 60% 40°C (AC) 150 A
ED 100% 40°C (AC) 130 A
ED bei max. Strom 40°C (DC) 30 %
ED 60% 40°C (DC) 150 A
ED 100% 40°C (DC) 130 A
Voltage setting: Stufenlos
Welding range max. 180 A
Electrode welding
Welding range min. 5 A
Schweißbare Elektroden min. 1.5 mm
Welding range max. 150 A
Schweißbare Elektroden max. 4 mm

DC

  • “3 steps and weld” operating concept
  • Stepless current adjustment
  • Amperometric digital display
  • Job memory for 2 TIG and MMA welding tasks each
