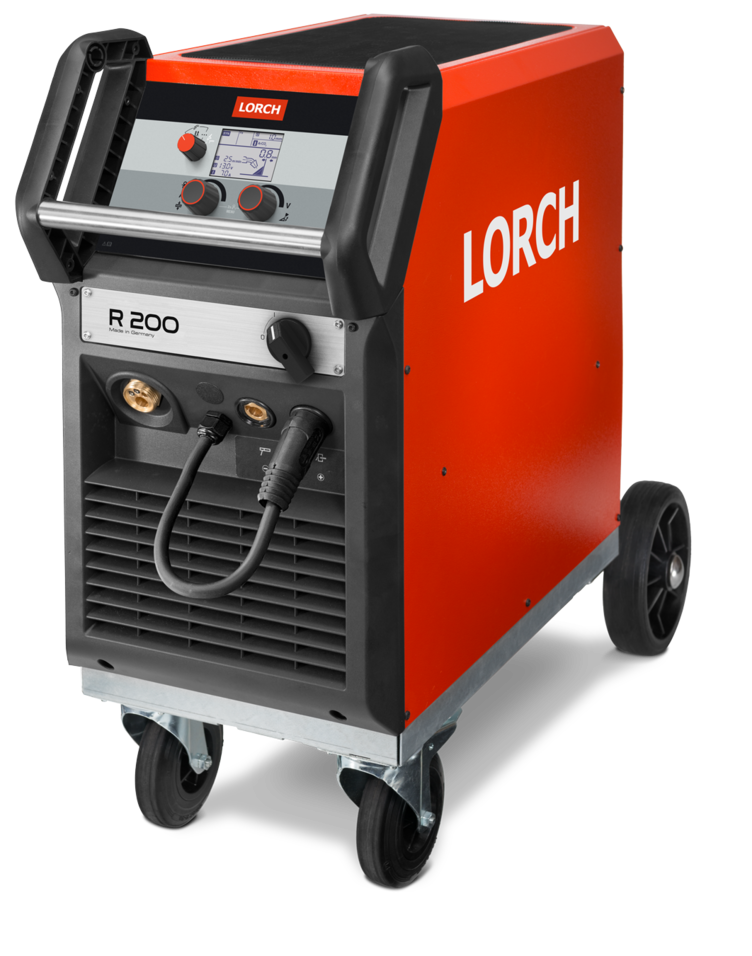

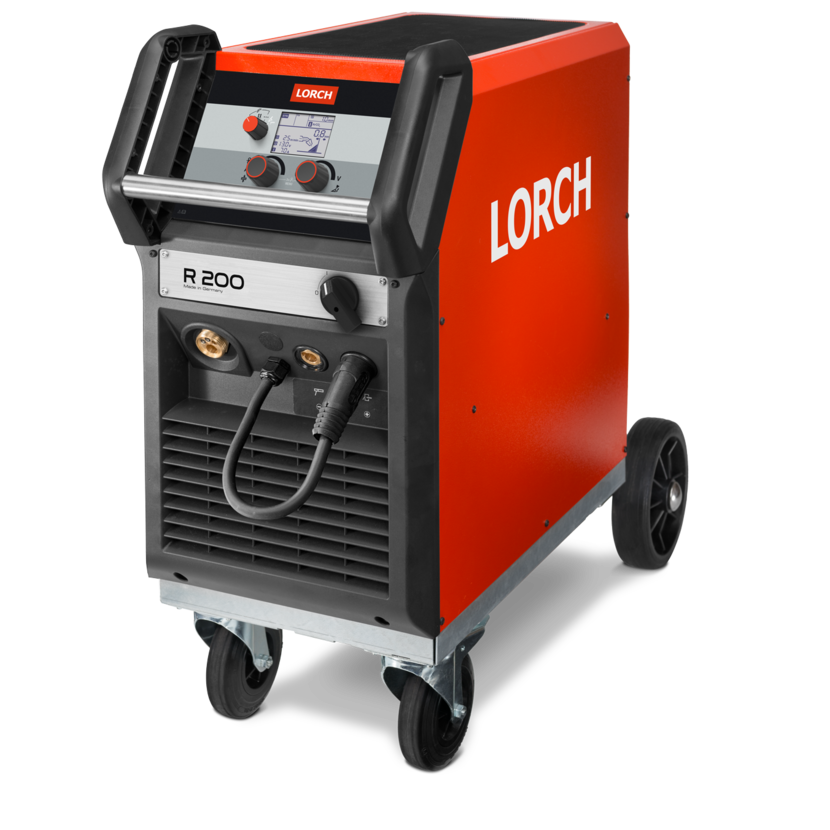

R 200
The workshop champion.
  • Operating concept: ControlPro
  • 20 - 220 A
  • ED 60 % at 40°C: 105 A
  • Steel, stainless steel, aluminium
R 200
Read more

Technical data

MIG-MAG welding
Welding range 1~ 230 V: [A] 25 - 200
Voltage range: [V] 15.3 - 24
MIG-MAG duty cycle
Duty cycle 100% (40°c): [A] 100
Duty cycle 60% (40°c): [A] 105
Mains 230 V
Mains voltage 1~ (50/60 Hz): [V] 230
Mains fuse 1~ (50/60 Hz): [A] 16
Mains plug
Mains plug: Schuko
Standards and approvals
Protection class: IP23S
Insulation class: F
Norm/Standard: EN60529
Designation/Certification: CE
Cooling type
Cooling type: Gas-cooled
Dimensions length x width x height
Dimensions (LxWxH) [mm] 880 × 400 × 755

  • “3 steps and weld” operating concept
  • Visualised sheet thickness and weld seam geometry
  • Arc length correction
  • Modes for MMA and TIG welding

Other products of the series

MIG-MAG

R 300

  • Operating concept: ControlPro
  • 20 - 290 A
  • ED 60 % at 40°C: 215 A
  • Steel, stainless steel, aluminium
Read more

Downloads

You would like to learn more? Technical data as well as details on application and equipment can be found here:
