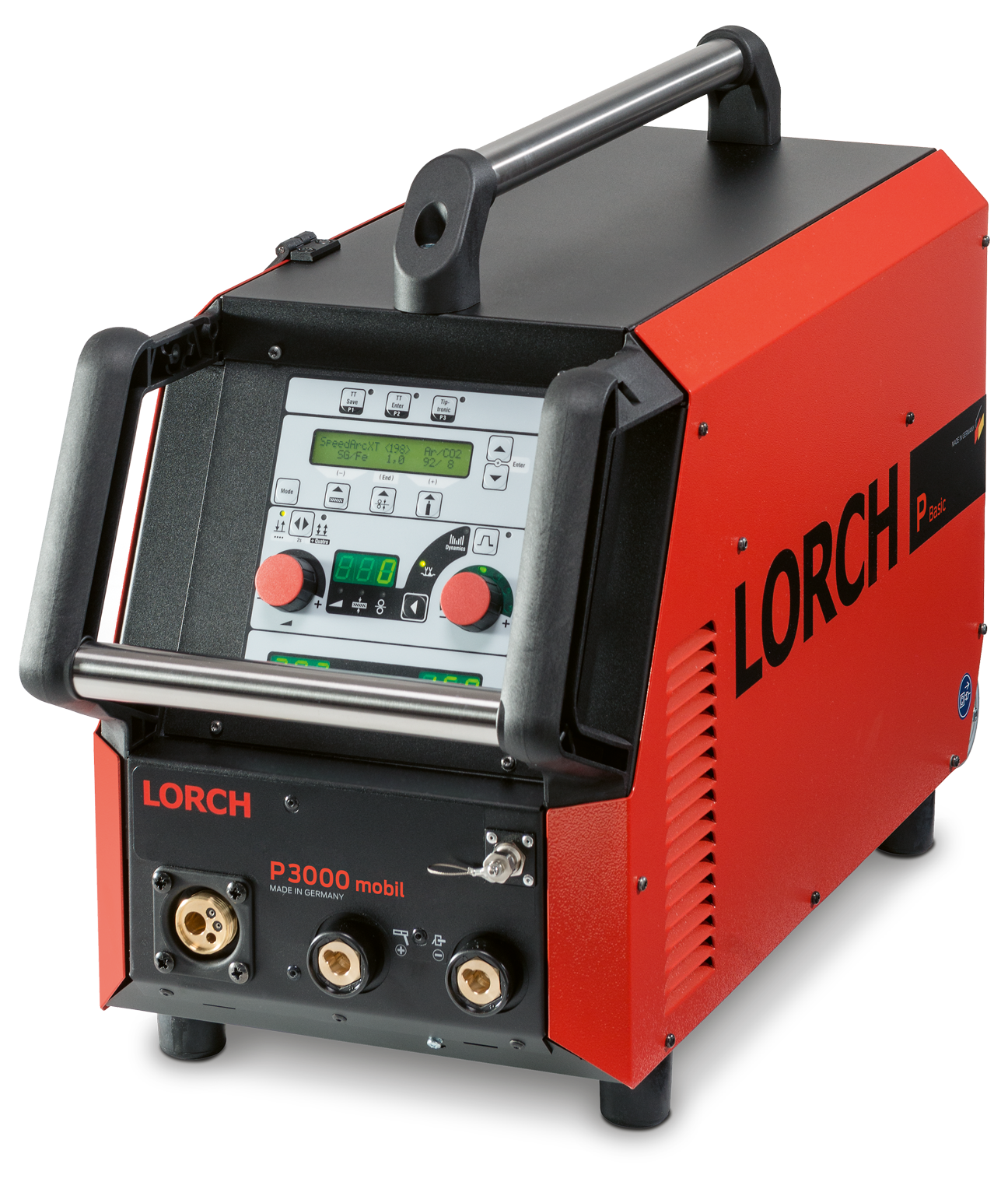

P 3000 mobile
Energy-efficient top performance around the clock.
  • Operation concepts: Basic, XT
  • 25 - 300 A
  • ED 60% at 40°C: 280 A
  • Weldable wires steel: 0.6 – 1.2 mm Ø
P 3000 MOBILE

EN1090-compliant package.

Save some time- and cost-intensive individual tests of your welding results! The enclosed Lorch WPS booklet contains independently certified welding instructions of all relevant standard welding procedures for easy EN1090-compliant welding.

Energy efficiency at full power.

The Lorch P 3000 mobile combines top performance with efficient inverter technology and a stand-by function. This reduces costs while achieving perfect welding results.

Extra performance by MIG-MAG Speed processes.

The P 3000 mobile has several Lorch Speed processes that create the most diverse areas of application. The included processes, as well as the optional upgrades will let you weld more quickly and at higher quality.

Operating modes can be optimised individually.

Quatromatic technology avoids cold laps at the welding start and ensures optimal end crater filling. Save up to three individual parameter settings and call them up again easily in 4-stroke operation via the torch button.

Country-specific product variants.

Country-specific product variants are available for this Lorch welding unit. These may differ in the mains supply, the mains plug or other product features required for the country. You want to know more? Contact your local Lorch partner.

Technical data

MIG-MAG welding
Welding range 3~ 400 V: [A] 25 - 300
Voltage range: [V] 15.2 - 29
Weldable Wires Steel: [Ø in mm] 0.6 - 1.2
Weldable wires aluminum: [Ø in mm] 1 - 1.2
Weldable wires CuSi: [Ø in mm] 0.8 - 1.2
Voltage setting
Voltage setting: Continuo
MIG-MAG duty cycle
Duty cycle 100% (40°c): [A] 250
Duty cycle 60% (40°c): [A] 280
Duty cycle at max. current (40°c): [%] 50
Electrode welding
Weldable electrodes: [Ø in mm] 1 - 6
Process-independent data
Open circuit voltage: [V] 78 - 109
Feed speed standard: [m/min] 0.1 - 25
Mains 400 V
Mains voltage 3~ (50/60 Hz): [V] 400
Mains fuse 3~ (50/60 Hz): [A] 16
Positive mains tolerance 3~ (50/60 Hz): [%] 15
Negative mains tolerance 3~ (50/60 Hz): [%] 15
Mains plug
Mains plug: CEE 16
Standards and approvals
Protection class: IP23S
Insulation class: F
Norm/Standard: EN 60974-01
Designation/Certification: CE, S
Cooling type
Cooling type: Gas-cooled
Dimensions length x width x height
Dimensions (LxWxH) [mm] 812 × 340 × 518
Weights
Weight: [kg] 34

Basic

  • “3 steps and weld” operating concept
  • Digital Volt-Amperage-display
  • Stepless current adjustment

XT

  • “3 steps and weld” operating concept
  • Digital Volt-Amperage-display
  • Stepless current adjustment
  • Graphic user guidance in the LCD graphic display
  • Simple process and welding programme selection
  • Dynamic control (at Synergic, SpeedArcXT)
  • Tiptronic job memory for 100 welding tasks
