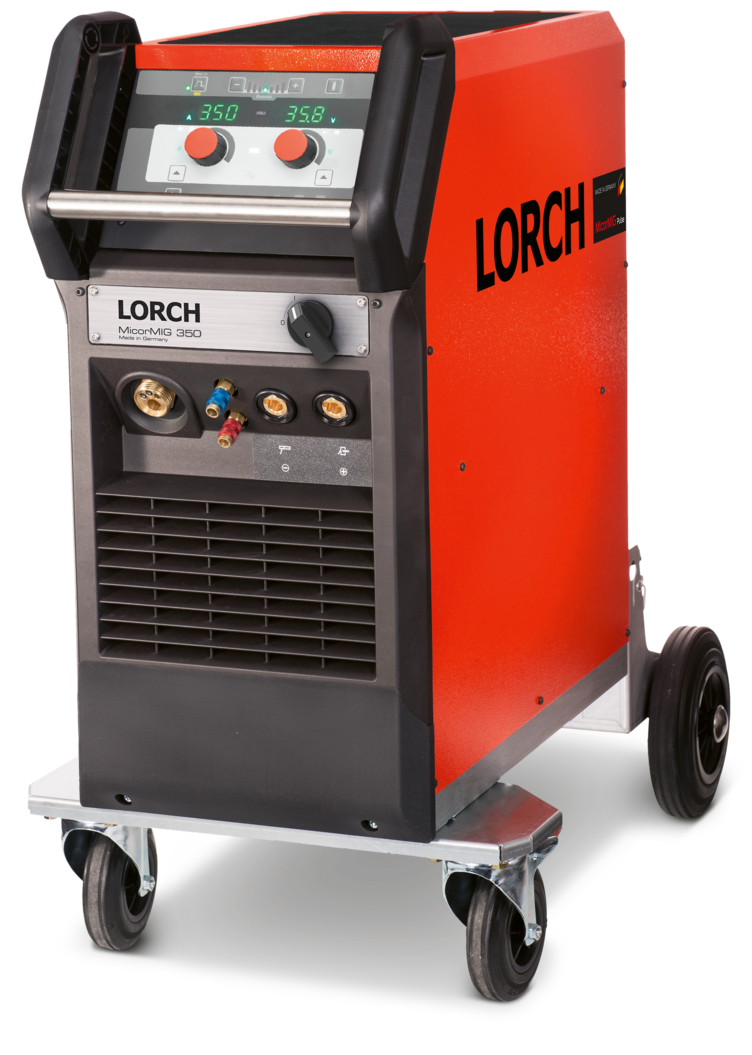

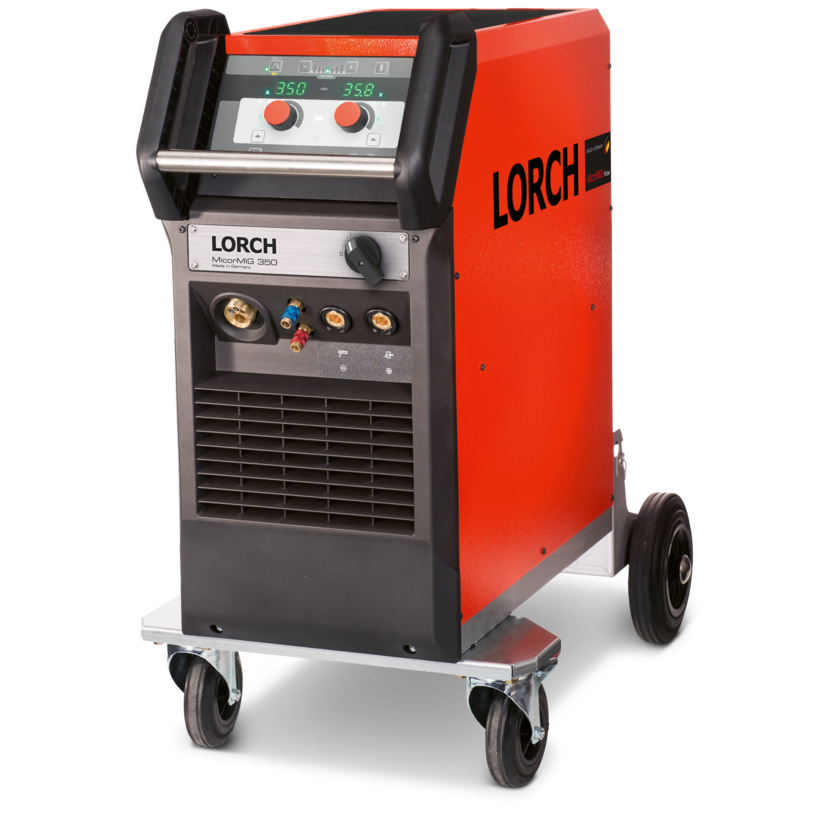

MicorMIG Pulse 350
Low-spatter welding thanks to stable and controllable pulse arc.
  • Operation concepts: BasicPlus, ControlPro
  • 25 - 350 A
  • ED 60% at 40°C: 300 A
  • Weldable wires steel Pulse steel: 0.6 – 1.2 mm Ø
MICORMIG PULSE 350

Low-spatter pulse welding.

The stable pulsed arc that can be controlled very well saves rework and time for other tasks. The pulsed process warrants low-spatter welding without any time-consuming rework across the entire synergic lines.

MicorBoost-technology for perfect welding results.

The innovative and patented Micorboost technology maximises power and the voltage reserve in the arc, optimising welding properties for all sheet metal as well as medium and heavy steel work. This results in outstanding welding results on steel, stainless steel, and aluminium.

EN1090 conformity + NFC technology.

Easily weld EN1090 compliantly thanks to the WPS booklet. Save some time- and cost-intensive individual tests of your welding results. The booklet contains independently certified welding instructions for all the relevant standard welding procedures. The MicorMIG Pulse 350 also keeps your parameter sets conveniently available via an NFC job card.

Future-proof by upgrade capacity.

Always just the functions you need: The NFC function makes the MicorMIG Pulse 350 welding units fully upgradeable, allowing you to subsequently install additional welding processes, welding programmes, and functions to facilitate work with NFC cards at any time, offline and without needing any external support.

Perfect quality assurance with the authorisation concept.

NFC technology allows setting up of a personalised authorisation system for welding system operation. The MicorMIG Pulse 350 allows use of NFC authorisation to ensure that only specific welders are allowed to adjust the corresponding parameters. A timed lock for the end of the working day additionally prevents unauthorised work on the device.

Outstanding price-performance ratio.

The MicorMIG Pulse 350 offers an easy switch to a fully adjustable welding system. Profit from the optimal welding properties of the MicorMIG Pulse 350 at an excellent price-performance ratio.

Energy efficiency by technology.

The Lorch MicorMIG Pulse 350 combines robust performance with efficient inverter technology and a stand-by function. This reduces costs while achieving perfect welding results. Transformers are a thing of the past.

Country-specific product variants.

Country-specific product variants are available for this Lorch welding unit. These may differ in the mains supply, the mains plug or other product features required for the country. You want to know more? Contact your local Lorch partner.

Technical data

MIG-MAG welding
Welding range min. 25 A
Welding range max. 350 A
Voltage setting: Stufenlos
ED 100% 40°C 250 A
ED 60% 40°C 300 A
ED bei max. Strom 40°C 45 %
Wire feed and wire
Vorschubeinheit 4 Rollen (2-angetrieben)
Schweißbare Drähte Alu Pulse max. 1.2 mm
Schweißbare Drähte Alu Pulse min. 1 mm
Schweißbare Drähte Stahl Pulse max. 1.2 mm
Schweißbare Drähte Stahl Pulse min. 0.8 mm
Schweißbare Drähte Alu max. 1.2 mm
Schweißbare Drähte Alu min. 1 mm
Schweißbare Drähte Stahl max. 1.2 mm
Schweißbare Drähte Stahl min. 0.6 mm
Mains
Mains voltage: 400 V
Mains plug: CEE 32
Netzabsicherung 32 A
Max. negative Netztoleranz bei verringerter Ausgangsleistung 30 %
Negative Netztoleranz 15 %
Positive Netztoleranz 15 %
Phasen (50/60 Hz) 3
Dimensions and weights
Length 880 mm
Width 490 mm
Height 885 mm
Length 880 mm
Width 490 mm
Height 955 mm
Gewicht Stromquelle A-Ausführung Gasgekühlt 58 kg
Gewicht Vorschubkoffer (Werkstattausführung) 10.6 kg
Gewicht Wasserkühlung (gefüllt) 13 kg
Standards and approvals
Norm EN 60974-01
Schutzart (EN 60529) IP23S
Insulation class: F
Kennzeichnung CE. S

BasicPlus

  • “3 steps and weld” operating concept
  • Simple one-button operation
  • Stepless current adjustment
  • Digital Volt-Amperage-display
  • Automatic settings (synergy function)
  • Simple process and welding program selection
  • 7-step dynamic arc control

ControlPro

  • “3 steps and weld” operating concept
  • Simple one-button operation
  • Stepless current adjustment
  • Digital Volt-Amperage-display
  • Automatic settings (synergy function)
  • Simple process and welding programme selection
  • 21-step dynamic arc control
  • OLED graphic display - for display of the 3rd main parameter
  • Tiptronic job memory for 100 welding tasks
