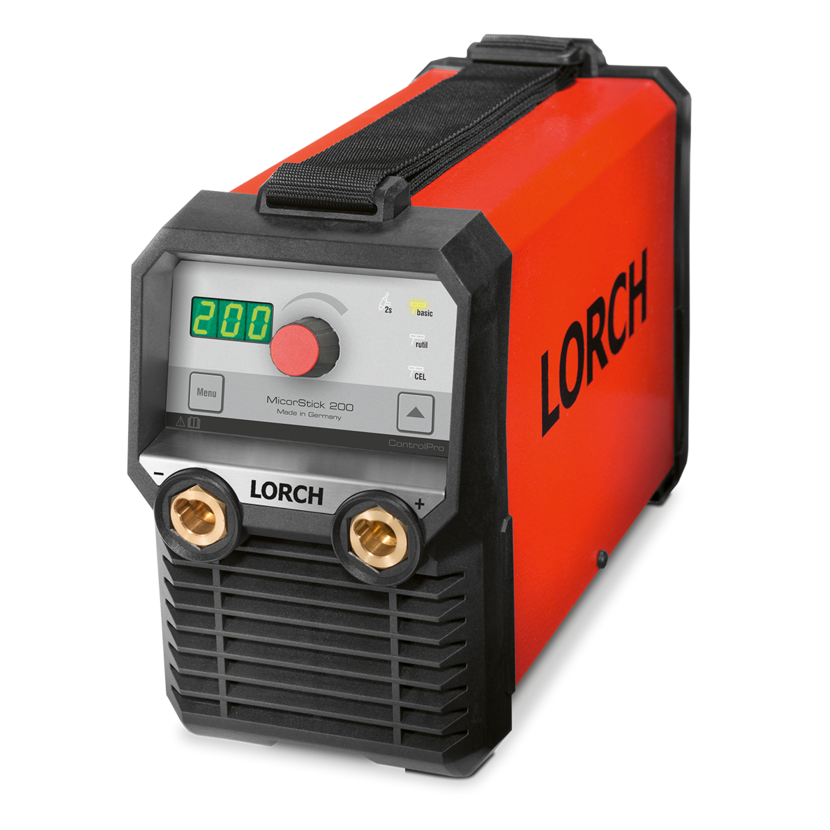

MicorStick 200
Everywhere. Convincing. Superior.
  • Operation concepts: ControlPro, ControlPro RC
  • 10 - 200 A
  • ED 60% at 40°C: 150 A
  • Weldable electrode: Up to 5.0 mm Ø
MICORSTICK 200

A robust featherweight.

On average, welding equipment like this tends to fall off of workbenches or sills four times during its service life! Able to take falls from a height of 80 cm, the MicorStick 200 with its weight of only 6.3 kg can cope with this easily and will continue to give you reliable welding performance.

Long-distance champions.

Extension cords, low and fluctuating line voltage, generator operation: The MicorStick 200 can weld easily even using extension cables of up to 200 metres and will compensate for dropping voltage. It will not turn off before reaching a negative tolerance of 40%.

Safe and standard-compliant.

No compromises! The IP 23S, the S mark, and verified CE conformity in accordance with European standards as well as ongoing quality assurance in Germany promise the greatest safety in the workshop and at the customer’s site.

Long-term welding quality.

The MicorStick 200 puts an end to broken connectors, damaged insulation, kinked welding cables, and charred contacts with thick 25 mm² welding cables and large, industrial-grade, 13 mm Ø welding sockets to make a true difference, offer greater safety, and vastly improve welding quality.

Country-specific product variants.

Country-specific product variants are available for this Lorch welding unit. These may differ in the mains supply, the mains plug or other product features required for the country. You want to know more? Contact your local Lorch partner.

Technical data

Mains
Mains voltage: 400 V
Mains plug: CEE 16
Netzabsicherung 16 A
Negative Netztoleranz 25 %
Positive Netztoleranz 15 %
Phasen (50/60 Hz) 3
Dimensions and weights
Gewicht Stromquelle 6.3 kg
Height 215 mm
Width 130 mm
Length 360 mm
Standards and approvals
Norm EN 60974-01
Schutzart (EN 60529) IP23S
Insulation class: F
Kennzeichnung CE. S
TIG welding
Welding range min. 15 A
Welding range max. 200 A
Electrode welding
Welding range min. 10 A
Schweißbare Elektroden min. 1.5 mm
ED bei max. Strom 40°C (DC) 30 %
ED 60% 40°C (DC) 150 A
ED 100% 40°C (DC) 130 A
Voltage setting: Stufenlos
Welding range max. 200 A
Schweißbare Elektroden max. 5 mm

BasicPlus

  • “3 steps and weld” operating concept
  • Simple one-button operation
  • Stepless current adjustment
  • Electrode preselection (basic, rutile, and CEL) for optimal welding parameters

ControlPro

  • “3 steps and weld” operating concept
  • Simple one-button operation
  • Stepless current adjustment
  • Electrode preselection (basic, rutile, and CEL) for optimal welding parameters
  • Amperometric digital display
  • Submenu for individual system setting adjustments
