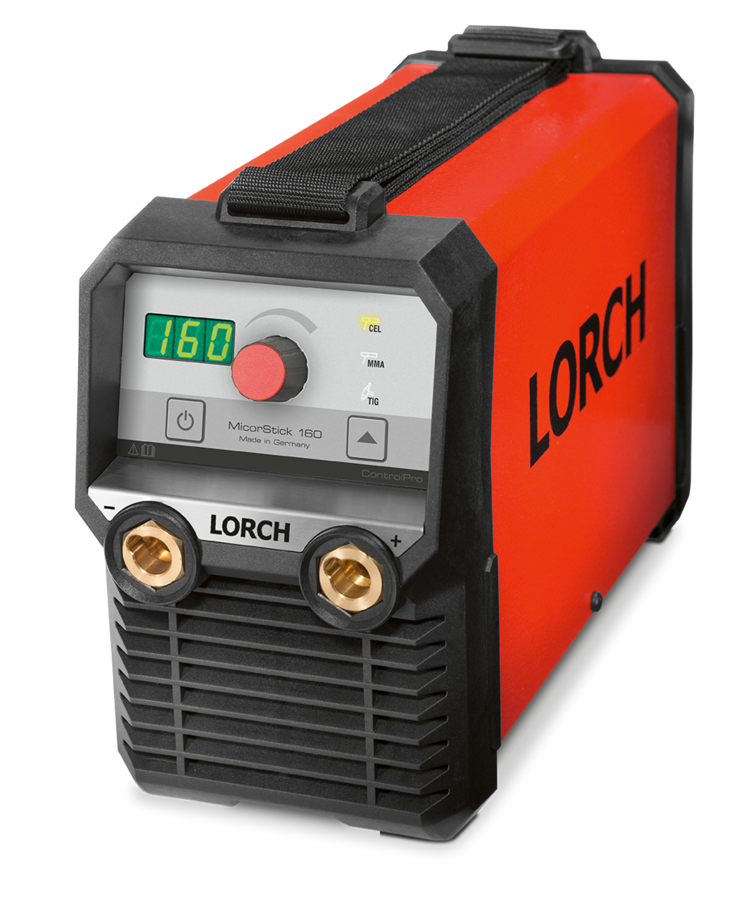

MicorStick 160
Everywhere. Convincing. Superior.
  • Operation concepts: BasicPlus, ControlPro
  • 15 - 160 A
  • ED 60% at 40°C: 120 A
  • Weldable electrode: Up to 4.0 mm Ø
MICORSTICK 160

A robust featherweight.

On average, welding equipment like this tends to fall off of workbenches or sills four times during its service life! Able to take falls from a height of 80 cm, the MicorStick 160 with its weight of only 4.9 kg can cope with this easily and will continue to give you reliable welding performance.

Long-distance champions.

Extension cords, low and fluctuating line voltage, generator operation: The MicorStick 160 can weld easily even using extension cables of up to 200 metres and will compensate for dropping voltage. It will not turn off before reaching a negative tolerance of 40%.

Safe and standard-compliant.

No compromises! The IP 23S, the S mark, and verified CE conformity in accordance with European standards as well as ongoing quality assurance in Germany promise the greatest safety in the workshop and at the customer’s site.

Long-term welding quality.

The MicorStick 160 puts an end to broken connectors, damaged insulation, kinked welding cables, and charred contacts with thick 25 mm² welding cables and large, industrial-grade, 13 mm Ø welding sockets to make a true difference, offer greater safety, and vastly improve welding quality.

Country-specific product variants.

Country-specific product variants are available for this Lorch welding unit. These may differ in the mains supply, the mains plug or other product features required for the country. You want to know more? Contact your local Lorch partner.

Technical data

Electrode welding
Welding range 230 V: [A] 10 - 150
Voltage range: [V] 20.4 - 26
Weldable electrodes: [Ø in mm] 1.5 - 4
Electrode duty cycle
Duty cycle 100% (40°c): [A] 110
Duty cycle 60%: [A] 120
Duty cycle at max. current (40°c): [%] 30
TIG welding
Welding range 1~ 230 V: [A] 15 - 160
Voltage range: [V] 10.6 - 16.4
TIG Duty cycle DC 230 V
Duty cycle DC 100% (40°c): [A] 110
Duty cycle DC 60% (40°c): [A] 120
Duty cycle DC at max. current (40°c): [%] 30
Process-independent data
Open circuit voltage: [V] 67 - 106
Open circuit voltage VRD: [V] 12 - 18
Mains 230 V
Mains voltage 1~ (50/60 Hz): [V] 230
Mains fuse 1~ (50/60 Hz): [A] 16
Positive mains tolerance 1~ (50/60 Hz): [%] 15
Negative mains tolerance 1~ (50/60 Hz): [%] 15
Mains plug
Mains plug: Schuko
Standards and approvals
Protection class: IP23S
Insulation class: F
Norm/Standard: EN 60974-01
Designation/Certification: CE, S
Cooling type
Cooling type: Gas-cooled
Dimensions length x width x height
Dimensions (LxWxH) [mm] 360 × 130 × 215
Weights
Weight: [kg] 4.9

BasicPlus

  • “3 steps and weld” operating concept
  • Simple one-button operation
  • Stepless current adjustment
  • Electrode preselection (basic, rutile, and CEL) for optimal welding parameters
